Intrinsic thermo-acoustic instability criteria based on frequency response of flame transfer function Mohammad Kojourimanesh 1 , Viktor Kornilov 2 , Philip de Goey 3 Eindhoven University of Technology Dept. of Mechanical Engineering, TU/e, Eindhoven, The Netherlands Ines Lopez Arteaga 4 Eindhoven University of Technology & KTH Royal Institute of Technology Dept. of Mechanical Engineering, TU/e, Eindhoven, The Netherlands Dept. of Engineering Mechanics, KTH, Stockholm, Sweden

ABSTRACT A study of Intrinsic Thermo-Acoustic (ITA) instability behavior of flames anchored to a burner deck is performed by introducing a mapping between the Flame Transfer Function, FTF(s), defined in the complex (Laplace) domain and the experimentally measured Flame Frequency Response, FFR(iω). The conventional approach requires a system identification procedure to obtain the FTF(s) from the measured FFR(iω). Next, root-finding techniques are applied to define the complex eigenfrequencies. The common practice is to fit the FTF(s) by a rational function that may lead to artifacts like spurious poles and zeros. The purpose of the present work is to establish instability criteria which are directly applicable in the frequency domain. The particular case is considered where the acoustic boundary conditions at both sides of the flame are anechoic. Therefore, the pure ITA mode is treated. First, the causality of the measured FFR(iω) is checked. Then, the criteria of the ITA mode instability applica- ble to the FFR(iω) phase and magnitude, are derived. Causality properties are used to find the un- stable frequency, growth rate, and even the maximum possible value of the linear growth rate. In addition, a procedure is explained to reconstruct the flame transfer function in the complex plane s from the measured flame frequency response which could be an alternative method to study the FTF behavior in the complex domain instead of its estimation with a rational function.

1. INTRODUCTION

Modeling the (in-)stability of thermo-acoustic systems within the network modeling approach re- quires an analysis in the complex (Laplace) domain. This means that for all elements of the model, including a burner with flame, the descriptions should be obtained in terms of functions of complex frequency ( 𝑠= 𝜎+ 𝑖𝜔 ). However, with current technologies, it is only possible to measure the Flame Frequency Response ( 𝐹𝐹𝑅 𝑖𝜔 ) as a function of linear/circular frequency 𝜔 . Therefore, a system iden- tification procedure is required to obtain the Flame Transfer Function in the complex plane, 𝐹𝑇𝐹 𝑠 . Several studies have been conducted to model 𝐹𝑇𝐹 𝑠 from the measured 𝐹𝐹𝑅 𝑖𝜔 [1,2]. In addition, a few studies, such as in [3], have tried to find a relationship between the flame transfer function in the

1 m.kojourimanesh@tue.nl 2 v.kornilov@tue.nl 3 L.P.H.d.Goey@tue.nl 4 i.lopez@tue.nl

worm 2022

complex domain and the flame frequency response. Attempts to develop alternative approaches when the instability criteria are directly based on the analysis of the flame frequency response are still limited. For example, the Nyquist criterion is based on the Argument principal and is a well-known technique in Control Theory that is also commonly used in the analysis of thermo-acoustic systems. The Nyquist plot (the polar plot of the frequency response) is used to find the differences of the number of poles and zeros of the system in the right half plane (RHP) of the complex domain. This technique makes it possible to resolve the dilemma of (in-)stability of the system. However, this approach does not provide direct information about the unstable frequencies and growth rates. In a pioneer work Kopitz and Polifke proposed an approach how to estimate the unstable frequency and growth rate directly from the polar plot of the Open-Loop system Transfer Function (OLTF) without solving the dispersion relation [4]. The goal of this work is to further extend this methodology to provide insight into system design techniques to ensure the operational stability of an appliance.

2. FORMULATION

There is a large group of burners in which the heat release rate is particularly and exclusively sensitive to velocity perturbations on the upstream side of the flame. Thermo-acoustic characteristics of these compact velocity-sensitive flames can be described with the definition of their 𝐹𝑇𝐹 𝑠 . In literature like [4–6], it has been shown that the Flame Transfer Matrix ( 𝐹𝑇𝑀 ), which describes the linear relation- ship between the acoustic pressure and velocity fluctuations at the upstream of the burner/flame ( 𝑝 𝑢𝑝 ′ , 𝑢 𝑢𝑝 ′ ) and at the downstream of it ( 𝑝 𝑑𝑛

′ ) is linearly related to the burner with flame transfer function and in the limit of zero mean flow Mach number the link is the following:

′ , 𝑢 𝑑𝑛

worm 2022

′

′ ቋ= ൤1 0 0 1 + 𝜃 𝐹𝑇𝐹 𝑠 ൨ቊ𝑝 𝑢𝑝 ′

ቊ 𝑝 𝑑𝑛

𝑢 𝑢𝑝 ′ ቋ, (1)

𝑢 𝑑𝑛

where 𝜃= (𝑇 𝑑𝑛 തതതതത𝑇 𝑢𝑝 തതതത ൗ ) −1 is the temperature ratio; 𝑇 𝑢𝑝 തതതത , 𝑇 𝑑𝑛 തതതതത being the mean temperature at the up- stream and downstream sides of the flame. In terms of Riemann invariants (𝑓, 𝑔) , defined as

1

𝑝

1

𝑝

𝜌 0 𝑐 + 𝑢ቁ , 𝑔≝

𝜌 0 𝑐 −𝑢ቁ and shown in Figure 1, the fluctuations of pressure and velocity can be written as

𝑓≝

2 ቀ

2 ቀ

൜ (𝑓 2 + 𝑔 2 ) = 𝜀(𝑓 1 + 𝑔 1 ) 𝑓 2 −𝑔 2 = (1 + 𝜃 𝐹𝑇𝐹 𝑠 ) (𝑓 1 −𝑔 1 ) , (2)

𝜌 𝑢𝑝 𝑐 𝑢𝑝 𝜌 𝑑𝑛 𝑐 𝑑𝑛 is the jump in characteristic acoustic impedance across the flame.

where 𝜀=

Figure 1: Generic representation of thermo-acoustic of a combustion system.

2.1. Thermo-acoustic system matrix

Riemann invariants at the upstream and downstream sides of the flame are related with the reflection coefficients at both sides, i.e., 𝑅 up = 𝑓 1 𝑔 1 Τ , 𝑅 dn = 𝑔 2 𝑓 2 Τ . Therefore, by substituting 𝑓 1 and 𝑔 2 in Equation 2, one can derive the full system matrix expression of a thermo-acoustic system as follows:

ቈ ൫1 + 𝑅 up )𝜀 −(1 + 𝑅 dn )

൫1 + 𝜃 𝐹𝑇𝐹 𝑠 )(𝑅 up −1൯ (𝑅 dn −1) ቉൜𝑔 1

ൠ= ൜ 0

0 ൠ. (3)

𝑓 2

For 1 + 𝜃 𝐹𝑇𝐹 𝑠 ≠0 , the eigenvalues of the system will be obtained from the dispersion relation, i.e., the requirement that the determinant of the thermo-acoustic system matrix equals zero. The dispersion relation of the thermo-acoustic system is given by

Ψ 𝜀+ 1 + 𝜃 𝐹𝑇𝐹 𝑠 0 = 0 , (4)

(1+𝑅 𝑢𝑝 ൯

(1−𝑅 𝑑𝑛 )

where Ψ =

(1+𝑅 𝑑𝑛 ) is a function which incorporates information about acoustics of the termi-

൫1−𝑅 𝑢𝑝 )

nations with respect to the burner element. For the case of 1 + 𝜃 𝐹𝑇𝐹 𝑠 = 0 , Equation 4 cannot be used, and one can use only

1

𝜃 + 𝐹𝑇𝐹 𝑠 = 0 .

2.2. Intrinsic Thermo-Acoustic (ITA) instability equation

To elucidate features of purely intrinsic thermo-acoustic system modes, one should apply anechoic terminations at both sides of the flame in Equations 3 and 4, i.e., 𝑅 up = 0, 𝑅 dn = 0 . Therefore, Ψ = 1 and Equation 4 reduces to so called the “intrinsic instability equation” [4,7]

𝑛 0 + 𝐹𝑇𝐹 𝑠 0 = 0 , (5)

𝜀+1

where 𝑛 0 is a real positive number which depends on 𝜀 and 𝜃 as 𝑛 0 = ቚ

𝜃 ቚ . By applying the two

equations 𝑐 2 = 𝛾𝑅𝑇 and 𝑃= 𝜌𝑅𝑇 for the perfect (ideal) gas with considering con stant pressure be-

𝑇 ത 𝑑𝑛

𝑇 ത 𝑑𝑛

fore and after the compact thin flame, one can derive the value of 𝑛 0 as 𝑛 0 ≅ ට

𝑇 ത 𝑢𝑝 −1 ൘ . The

𝑇 ത 𝑢𝑝 + 1

case 1 𝜃 ൗ+ 𝐹𝑇𝐹 𝑠 = 0 is similar to the intrinsic mode and it can be treated with the same strategy ex- pressed below. If the flame transfer function in the complex domain, 𝐹𝑇𝐹 𝑠 , is known, then the roots of Equation 5, 𝑠 0 , are found when the ห𝐹𝑇𝐹 𝑠 0 ห= 𝑛 0 and ∠𝐹𝑇𝐹 𝑠 0 = 𝜋, 3𝜋, … which needs to be searched in the complex plane. In most cases, flame transfer functions are complicated functions, therefore the roots cannot be found analytically, except for the case of simple models. In most cases, the analytical form of the flame transfer function in the complex domain is unknown, as only the flame frequency response (𝐹𝐹𝑅 𝑖𝜔 ) can be measured. Therefore, to determine the intrinsic mode of the system, two approaches can be considered. The first one consists of modeling the flame transfer function in Laplace domain guessing a form of its functional dependence and then solving Equation 5 as in [6]. The second approach includes finding special criteria of presents of unstable roots based directly on the analysis of the measured flame frequency response in the frequency domain as in [4]. This approach supposes using certain properties of causal functions.

2.3. Causal function properties and Causality check

It is known that the functions which describe input-to-output relations of physical systems should satisfy the requirement that they are causal in the sense that the future of the input signal cannot influence the past of the output signal. In stable physical systems, causality implies the condition of analyticity in the Right Half Plane (RHP) of the complex domain ( 𝑠−𝑝𝑙𝑎𝑛𝑒 ) and, conversely, ana- lyticity in the RHP implies causality of the corresponding stable physical system [8]. An “analytic” function in the RHP implies that there is no pole in the RHP. Any mapping by an analytic function is conformal , i.e., it preserves local angles, at any point when it has a non-zero derivative [4]. In case of applying the advances of causal systems to measured data, such as the measured flame frequency response 𝐹𝐹𝑅 𝑖𝜔 , one could first check the causality of the measured data. To do this, one can calculate the real part of a causal function from the imaginary part of the measured data using the Kramers-Kronig relations [9] and then compare the measured real part with the derived real part of

worm 2022

this causal function and do the reverse for the imaginary part. The next option is to apply the Hilbert transform property to determine the causality of the system, as in [10]. However, a better method was developed by Barannyk et al. [11] as an SVD-based Fourier continuations algorithm to fit a Fourier series with a finite number ( 𝑀 ) of periodic and causal functions to the measured data. The goal is to construct an accurate Fourier series approximation of 𝐹𝐹𝑅 𝑖𝜔 in a given frequency domain which is

𝑀

∁(𝐹𝐹𝑅)(𝑥 𝑗 ) = ෍𝛼 𝑘 𝑒 − 2𝜋𝑖

𝑏 𝑘 𝑥 𝑗

, (6)

𝑘=1

0.5

where 𝑥 𝑗 =

𝜔 𝑚𝑎𝑥 𝜔 𝑗 is the normalized discrete frequency in the frequency range of [0, 𝜔 𝑚𝑎𝑥 ] , 𝑏 is

the period of the approximation, usually chosen as the length of the domain times two or four, and 𝛼 𝑘 coefficients which are generated by applying the truncated SVD method [11]. The order of the error between the measured data and the causal function would be a good indication for checking the causality of the given data. It is obvious that the error estimates should decrease as the number 𝑀 in- creases. The method is accurate, reliable, and capable of detecting very small-localized causality vi- olations with amplitudes close to machine precision. It has been successfully tested on several ana- lytical functions and measured flame frequency responses. For instance, for a perforated burner deck with hole diameter of 2 mm and a pitch of 4.5 mm (D2P4.5), at 𝜑= 0.8, V = 80 cm/s , the error between the measured 𝐹𝐹𝑅 and the closest causal function derived from a Fourier series of 𝑀 peri- odic causal functions (varying from 100 to 500) is shown in Figure 2.

worm 2022

IFFRI measured FERS @ V: 60 cms, 070] 00 200 = 00000 Frequency (H2) ‘000 ~=«200~«=S««300 «40050000 Frequency (Hz)

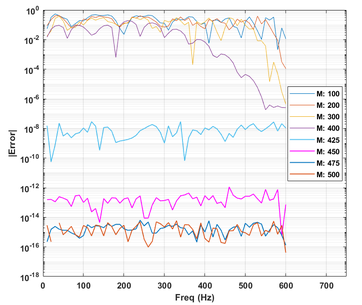

Figure 2: (left) Measured 𝐹𝐹𝑅(𝑓) of the burner D2P4.5, (right) Error between 𝐹𝐹𝑅(𝑓) and the

closest causal function derived from a Fourier series of 𝑀 periodic causal functions.

2.4. Stability and instability criteria of ITA mode

For a measured 𝐹𝐹𝑅 , the number of unstable system modes of the intrinsic thermo-acoustic nature is equal to the number of times 𝐹𝐹𝑅 𝑖𝜔 encircles the point (−𝑛 0 , 0) clockwise. Consequently, for the system to be intrinsically stable it is sufficient if for 𝐹𝐹𝑅 𝑖𝜔 , in the frequency range of 0 < 𝜔< +∞ one of the following conditions is satisfied ➢ the phase of 𝐹𝐹𝑅 𝑖𝜔 does not cross −𝜋 , i.e., −𝜋< ∠𝐹𝐹𝑅 𝑖𝜔 < 0 , or ➢ when the phase of 𝐹𝐹𝑅 𝑖𝜔 crosses −𝜋 , the real part of 𝐹𝐹𝑅 𝑖𝜔 is less than 𝑛 0 , i.e.,

|ℜ(𝐹𝐹𝑅 𝑖𝜔→−𝜋 )| < 𝑛 0 .

10° w \ o ‘o" 400200 ~=~«N00 ==] ‘Freq (Hz)

Proof. Based on the Argument principal, if the polar plot of a function does not turn around the critical point, (−𝑛 0 , 0) , then it signifies that the number of poles 𝑁 𝑝 and zeros 𝑁 𝑧 in the RHP is equal (or 𝑁 𝑝 > 𝑁 𝑧 ). If the causality check shows that 𝐹𝐹𝑅 𝑖𝜔 is an analytic function in the RHP, then it means that there is no RHP pole, therefore, 𝑁 𝑧 = 0 means that the system is stable.

2.5. The unstable intrinsic frequency, the growth rate and the bounds

For causal systems, Kopitz and Polifke have shown in [4] that the frequency of an unstable mode ( 𝜔 0 ) is approximately equal to the frequency where the distance between the critical point ( −1 + 𝑖0 ) and the polar plot of the OLTF reaches a local minimum. The growth/decay rate is approximately equal to the minimum distance between the critical point and the OLTF image curve divided by the mapping scale factor. “ The scaling factor can be determined by evaluating how an interval ( 𝜔 0 − ∆𝜔→𝜔 0 + ∆𝜔 ), is mapped to a segment 𝑇𝐹(𝜔 0 −∆𝜔) →𝑇𝐹(𝜔 0 + ∆𝜔 ) of the OLTF image curve. The scaling factor is then estimated as the arc length divided by 2∆𝜔 in the limit ∆𝜔→0 ” [4]. How- ever, it would be more accurate to consider the scaling factor as the linear distance (not the arc length) between the points before and after the unstable frequency, since the linear distance (not the arc length) between the critical point and the OLTF plot is used:

𝜎 0 2∆𝜔 =

𝐴𝑟𝑐(𝑇𝐹(𝜔 0 )− point(−1))

|𝑇𝐹(𝜔 0 )−point(−1)|

|𝑇𝐹(𝜔 2 )−𝑇𝐹(𝜔 1 )| .

𝐴𝑟𝑐(𝑇𝐹(𝜔 2 )−𝑇𝐹(𝜔 1 )) =

Therefore, for the intrinsic instability, the assessment of the polar plot of the measured 𝐹𝐹𝑅(𝑓) can be used to determine the (in)stability, the frequency of unstable oscillation, and the oscillation linear growth rate.

If the polar plot of the measured 𝐹𝐹𝑅 𝑓 turns around the point ( −𝑛 0 + 𝑖0 ), then the system is unstable. A good approximation of the unstable frequency would be the frequency in the Lefthand side of this point at the 𝐹𝐹𝑅 𝑓 polar plot, i.e., |ℜ(𝐹𝐹𝑅 𝑓 )| > 𝑛 0 , which has a minimum distance from this point. The distance divided by the scaling factor gives the positive growth rate, i.e.,

2∆𝜔 ห𝐹𝐹𝑅 𝑖𝜔0 −𝑛 0 ห

ห𝐹𝐹𝑅 𝑖(𝜔0+∆𝜔) −𝐹𝐹𝑅 𝑖(𝜔0−∆𝜔) ห . (7)

𝜎 0 =

The maximum possible growth rate of the intrinsic thermo-acoustic system can be reached if the maximum value of the 𝐹𝐹𝑅 𝑓 occurs in the −𝜋 phase. Then, the maximum growth rate would be

2∆𝜔 ห𝑀𝑎𝑥(𝐹𝐹𝑅 𝑖𝜔−𝜋 )−𝑛 0 ห

𝜎 𝑚𝑎𝑥 =

ห𝐹𝐹𝑅 𝑖(𝜔−𝜋+∆𝜔) −𝐹𝐹𝑅 𝑖(𝜔−𝜋−∆𝜔) ห . (8)

Also, the minimum possible positive growth rate of the intrinsic thermo-acoustic system can happen if the maximum value of the 𝐹𝐹𝑅 𝑓 occurs at frequency where |ℜ(𝐹𝐹𝑅 𝑓 )| = 𝑛 0 .

Proof. From Equation 7, it is evident that for the 𝜎 𝑚𝑖𝑛 = 0 it is needed to 𝐹𝐹𝑅 𝑖𝜔 0 = 𝑛 0 , and to obtain 𝜎 𝑚𝑎𝑥 , 𝐹𝐹𝑅 𝑖𝜔 0 should be equal to 𝑀𝑎𝑥(𝐹𝐹𝑅 𝑖𝜔 ) . Therefore, 𝐹𝑇𝐹 𝑠=𝜎 0 +𝑖𝜔 0 should also be the maximum of 𝑀𝑎𝑥(𝐹𝑇𝐹 𝑠=𝜎 0 +𝑖𝜔 ) due to conformality. The local maximum of line 𝐹𝑇𝐹 𝑠=𝜎 0 +𝑖𝜔 at 𝑠 0 = 𝜎 0 + 𝑖 𝜔 0 means that the polar plot of 𝐹𝑇𝐹 𝑠 is normal to the real axis, i.e., ∠𝐹𝑇𝐹 𝑠=𝜎 0 +𝑖𝜔 0 = 𝜋/2 and the con- formality says this should also be the case in the frequency response, i.e., ∠𝐹𝐹𝑅 𝑖𝜔 0 =𝑖𝜔 −𝜋 = 𝜋/2 . To show the above statement in terms of a graphical fashion, three 𝐹𝐹𝑅 𝑓 of the perforated burner D2P4.5 at three conditions of the equivalence ratio and the velocity are measured. The polar plots of them are shown in Figure 3. A pink color indicates the area where the unstable frequency ( 𝜔 0 ) must be found for any of them.

worm 2022

The maximum value of |𝐹𝐹𝑅 𝑓 | for these flame frequency responses are 1.03,1.17, and 1.53 respec- tively. The maximum value of 𝐹𝐹𝑅3 is higher than 𝐹𝐹𝑅2 , however, as can be seen in Figure 3, the angle ∠𝐹𝐹𝑅 2 is higher than ∠𝐹𝐹𝑅 3 at the unstable frequency ( 𝑠 0 = 𝜎 0 + 𝑖𝜔 0 ) which is more im- portant. Therefore, the value of the growth rate for the 𝐹𝐹𝑅 2 is bigger than one for 𝐹𝐹𝑅 3. Moreover, the ∠𝐹𝐹𝑅2 ≈𝜋/2 therefore, the case of maximum possible linear grow rate of ITA mode is realized for this combustion conditions for the same maximum value of |ℜ(𝐹𝐹𝑅)| .

worm 2022

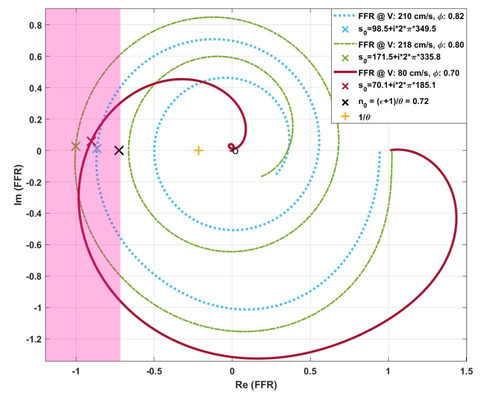

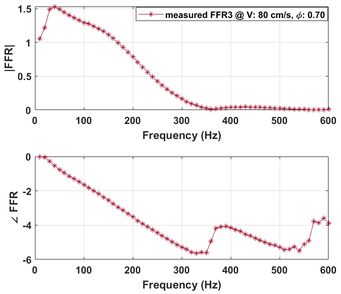

Figure 3: Three Measured 𝐹𝐹𝑅(𝑓) of the burner D2P4.5 and the unstable frequency region.

2.6. FTF reconstruction in the complex domain

An alternative approach to extend the measured frequency response to the FTF plane by fitting it with a rational function can be considered. If the measured FFR is causal, then it is possible to reconstruct the FTF at least for 𝜎> 0 from the measured 𝐹𝐹𝑅 𝑖𝜔 using the conformal mapping property of causal functions. The procedure could be as follows. 1) Find the location of the unstable frequency 𝜔 0 in the polar plot of 𝐹𝐹𝑅 𝑖𝜔 . 2) Measure the angle of 𝐹𝐹𝑅 𝑖𝜔 0 and because of the conformality (between Figure 4a and Figure 4b) represent this angle as the angle of 𝐹𝑇𝐹 𝑠 0 =𝜎 0 +𝑖𝜔 0 at the point ( −𝑛 0 + 𝑖0 ), i.e., ∠𝐹𝑇𝐹 𝑠=𝜎 0 +𝑖𝜔 j = α . Therefore, the first point (j) of FTF is reconstructed at the critical point with slope angle of α which is needed for finding the neighbor points. 3) Calculate the growth rate from Equation 7. 4) For each point ( 𝑗+ 1 ) after the critical point on the line 𝑠= 𝜎 0 + 𝑖𝜔 , calculate the scaling factor

ቚ𝐹𝐹𝑅 𝑖(𝜔 𝑗+1 ) −𝐹𝐹𝑅 𝑖(𝜔 𝑗 ) ቚ

based on 𝑟 𝑗+1 = 𝜎 0

∆𝜔 and then plot a circle with this radius and center of 𝐹𝐹𝑅 𝑖(𝜔 𝑗+1 ) . 5) Find a point on this circle that has the same angle as ∠𝐹𝐹𝑅 𝑠=𝑖𝜔 j . That point would be the next reconstructed point (j+1) of FTF on the line 𝑠= 𝜎 0 + 𝑖𝜔 . 6) Repeat this procedure for all points after and before the critical point on the line 𝑠= 𝜎 0 + 𝑖𝜔 as shown in Figure 4c.

FFR GV. 710 ems, 4:08 X apts a8 “FER @V: 218 emis, 080 X spire e358 \—FFR@v: soem, 2070 x syeTOtwa' sts X ns(enyonor2 + 0 Re (FFR)

7) Subsequently, this procedure can be repeated for other fixed values of 𝜎 , to reconstruct the polar plot of the line 𝐹𝑇𝐹 𝑠=𝜎+𝑖𝜔 . The results for 𝜎> 0 could be plotted similar to Figure 4d.

worm 2022

300, 20, o(s” 10 120 140 60

a) b)

4 constant ies of 8 He [> = -Ferarromes + constant ine of 175 He “constant ing of 195 He

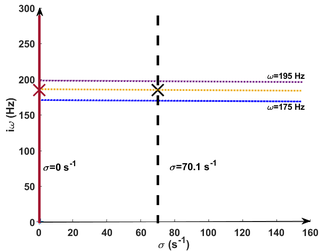

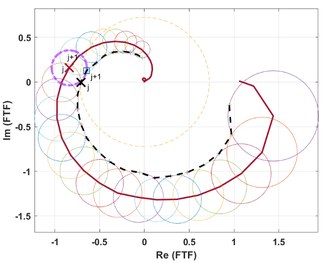

c) d) Figure 4: Conformal mapping between (a) s-plane and (b) polar plot of FTF. c) reconstruction

one line of the FTF based on the conformality property of causal functions. d) FTF plane. 4. CONCLUSIONS

In this work, an attempt is made to show that the flame frequency response ( 𝐹𝐹𝑅 ) is sufficient to study the dilemma of intrinsic thermo-acoustic (in-)stabilities without modeling the flame transfer function ( 𝐹𝑇𝐹 𝑠 ) in the complex domain which may generate artificial poles and zeros. It is shown that the causality of the measured flame frequency response can be checked with a straightforward pro- cedure to ensure that there is no unstable pole in the system (RHP pole) and one can use all properties of causal functions. The causality of such systems could help us to find the unstable frequency, growth rate, and even the maximum possible growth rate. A method is proposed how one can reconstruct the 𝐹𝑇𝐹 𝑠 in the RHP of the complex domain from the 𝐹𝐹𝑅 by using the conformality property of causal functions and geometrical reconstruction algorithm.

5. ACKNOWLEDGEMENTS

The authors wish to thank the Netherlands Organization for Scientific Research (NWO) for the financial support under project STABLE (16315).

45 re Fr, lenartomrr FTF
