Acoustic wave propagation through panels that are made of used tea bags

Stefano Mundula 1 and Haydar Aygun, PhD 2 London South Bank University School of the Built Environment and Architecture, 103 Borough Rd, London, SE1 0AA, UK

ABSTRACT

These days more than ever, society habits raise the necessity to consider the future of the environment. This presentation will tackle the aspect of more eco-friendly sound absorbing materials, more spe- cifically analysing the properties of consumed tea bags, starting from the collection up to the appli- cation and measurement of the final product. Many good options are often avoided, or not imple- mented for the lack of reliable properties analysis, encouraging existing materials to be chosen in- stead. The more information could be found about new materials, the more these could have a chance to be used, compared, or eventually improved. Sound absorbing panels that are made of tea bags were designed and developed to investigate sound transmission through tea-bag panels. Measure- ments were carried out on tea-bag panels in an impedance tube using a transfer function method to determine their sound absorption and transmission loss. Furthermore, the impedance gun system was used to determine acoustical properties of larger panels. Results show that 70 mm thick panels give an absorption coefficient higher than 0.8 between 500 Hz and 1600 Hz while 17 mm thick panels give an absorption coefficient that is mostly effective at higher frequencies. Up to 9 dB sound transmission loss is obtained at some frequencies.

1. INTRODUCTION

Tea became part of our life since 2500 B.C. Around six million tons of fermented and unfermented tea is being used by people every day across the world. Tealeaves are biodegradable but the plastic that is used to make tea bags is not recyclable or biodegradable. Conventional tea bags can’t totally decompose due to its plastic content. Therefore, these plastics can cause environmental pollution. For this investigation, the tea is supposed to stay inside the original bags after being used and then washed. However, it is a common practice to seal the bags with a sort of non-poisonous glue, even though it should be said that the main brands in the UK signed the WRAP’s UK Plastic Pact to get rid of all the plastic by the end of 2025 [1]. The bags used for the project do not contain any plastic. Despite the acoustic side of the problem, where plastic could interfere with the properties of the pure material, it is important to mention that a recent preliminary study by McGill University in Montreal Canada [2] , pointed out how the plastic in tea bags leaks into the beverage leaving billions of microplastics that can be harmful for the users and the environment, further studies will have to make clear if the phenomenon is actually harmful.

According to Wong [3] Spent Tea Leaves (STL) when compressed and mixed with natural rubber latex binder present a very good resistance to fire, to termites and fungal growth, as they are rich in

1 stefanomnd@gmail.com

2 aygunh@lsbu.ac.uk

scorn EEE DD red

polyphenols (tannins). The paper shows a table comparing three types of tea, where the finest quality presents the best acoustic properties with sound absorption coefficients from 0.84 to 0.96, for the range of frequencies between 2 kHz and 4 kHz.

scorn EEE DD red

The statistical facts about tea show that the countries where people drink more tea are different from the ones actually producing it the most. According to FAOSTAT [4] the global annual production in 2019 (most recent available) was of 6.101.062 tons with a global market size of nearly 50 billion of U.S dollars, 18 of which only regarding China. In-fact China seems to be massively more important compared to the rest of the list when comes to tea production, probably due to its ideal mild climate. Substantially the countries where tea farming has had the longest trading history like China, India and Kenya, continued to see tea production a very advantageous market. An interesting fact from the website statista [5] , reports that Turkey manages to be one of the top six countries producing tea, but when observing its consumption, appears to be first with almost seven pounds pro-capite in 2016, well much more compared to other countries, meaning that the Turkish production is mainly due for the local consumption. Ireland and UK confirm their tea drinking tradition as expected.

2. PANELS MADE OF USED TEA BAGS

The project, as well as the acoustic performance of the material, explored the production side of the panels to better understand the potential and main difficulties that might occur.

2.1 Preparation

The activity started collecting as many used tea bags as possible through a public Café. 400 tea bags were collected through public Café. Collected tea bags were washed and then dried. However, this could be optimised if implemented on a large scale with the help of industrial facilities and equip- ment, such as dryers. In order for the panels to be assembled, the tea bags have been rolled (see Figure 1), two panels 40cm x 40cm x 7.5cm were built and each panel needed about 1300 units to be com- pleted.

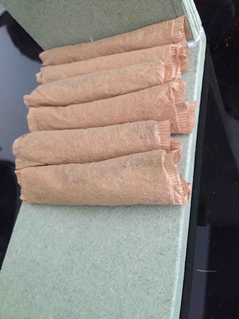

Figure 1: Preparation process

Particular attention is required for the product to be dried as mould would spread and ruin the whole panel and when assembling it is important to keep the surface as uniform as possible, with no gaps between bags. The total weight of the panel was 3.016 kg, keeping out the weight of the frame of 0.7576 kg the tea would weight 2.2584 kg, giving a density of circa 208.5 kg/m 3 .

scorn EEE DD red

2.2 Measurements

For the purpose, three different measurement procedures were used, determining the sound ab- sorption coefficient ( a ) and transmission loss (TL) of various samples with the use of an impedance tube and an impedance gun.

2.2.1 Sound absorption using impedance tube

A sample of test material with a movable rigid backing is placed at one end of a tube and a loud- speaker is placed at opposite end of the tube. Two ¼ inch microphones were mounted into a micro- phone grid at positions along the length of the impedance tube (as indicated in Figure 2), with each microphone grid being sealed tight to its housing. The microphones were fed to a four-channel data acquisition card (type MC3242, BSWA Tech.) which was connected to a computer for logging and further analysis. The acoustic sound field, an incident plane sinusoidal wave, P i was created by a loudspeaker with a built-in amplifier. The transfer function method is used to determine the acoustical properties of the sample whereby the sound pressure at two fixed microphone locations within the tube is measured and then used as input for the acoustic transfer function to calculate the absorption coefficients [6][7].

Data acquisition system

Computer

Figure 2: Impedance tube system [7].

Loudspeaker

Sample

Moveable rigid backing

The specimen used for the measurements (see Figure 3) was of two sizes, one of 17mm and a second one of 70mm.

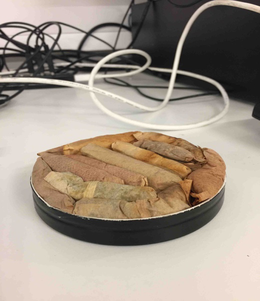

Figure 3: Tea bags samples

Mi ; by hee / A {72% Yt 4 AG

Table 1: The samples have been combined also together with air gaps, to cross reference more results.

N Sample composition

Tea sample

Empty space

Tea sample

Total length

mm

layer

layer

layer

mm 1 17 17 17 2 17-36-17 17 36 17 70 3 17-66-17 17 66 17 100 4 17-116-17 17 116 17 150 5 70 70 70 6 70-13-17 70 13 17 100 7 70-30 70 30 100 8 70-63-17 70 63 17 150 9 70-80 70 80 150

scorn EEE DD red

2.2.2 Sound absorption measurement using an impedance gun

The impedance gun method is defined as an In-Situ method . Although BS 13472-1-2 [8] specifies the In-Situ technique for road surfaces, this method does not have a dedicated British Standard, there- fore the measurement was made following the gun’s manual [9] . The core of the system is a platinum mini sensor (see Figure 4), able to measure the velocity and the pressure in the very same position in space, being particularly accurate at high frequencies, having a sensitivity range from 10 nm/s to 1 m/s. TWhite noise is generated towards the material mounted on a rigid surface using a sound source at 23 cm from the probe. The impedance gun is equipped with a system designed to decouple the sensors from structure born vibration generated by the spherical loudspeaker. The sound pressure and acoustic particle velocity are measured directly on the surface of the material. The absorption and reflection coefficient can be obtained directly from the measured impedance as the complex ratio of sound pressure to particle velocity [10].

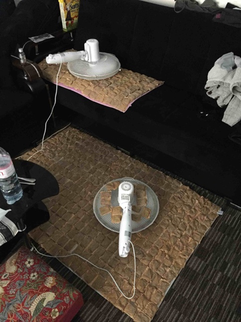

Figure 4: Impedance gun measurement

2.2.3 - Transmission loss measurements using the impedance tube

Measurements have been carried out in a circular impedance tube with an internal diameter of 100 mm (see Figure 5). A sample of test material is placed at the middle of a tube. A loudspeaker is placed at one end of the tube and a rigid plate is placed at the opposite end of the tube. Six ¼ inch micro- phones (three microphones on each side of the test sample) were mounted into microphone grid at

scorn EEE DD red

1.00 0.90 080 0.70 0.60 oso 040 0.30 0.20 0.10 000 —© 2 ‘80H2 100 Hz 125 Hz 160 Hz 200 Hz 250 Hz 315 Hz 400 Hz S00 Hz 630 Hz 800 Hr Absorption coefficient 3000 | 1250 | 1600 Hz | He He [a70mm| 0.04 0.06 | 0.07 0.12 | 0.20 0.30 049 0.70 093 0.99 092 0.84 0.79 0.84 \aeal7mm| 0.05 0.10 0.07 0.05 0.09 0.07 0.09 0.13 012 023 032 0.47 061 0.81

positions along the length of the impedance tube. Each microphone grid was sealed tight to its hous- ing. The microphones were fed to a four-channel data acquisition card (type MC3242, BSWA Tech.) which was connected to a computer for data analysis. The acoustic sound field, an incident plane sinusoidal wave, P i was created by a loudspeaker that was fed with a power amplifier with build-in pink noise generator (type PA50, BSWA Tech.). The sound signals at four fixed microphone loca- tions within the tube were simultaneously measured. Microphones 1 and 3 for upstream tube and 4 and 6 for downstream tube are used to measure the transmission loss between 63 Hz and 500 Hz while microphones 2 and 3 for upstream tube, and 4 and 5 for downstream tube are used to measure the TL of noise barriers between 250 Hz and 1600 Hz. The VA_LAB using Transfer Function Method separates the incident and reflected energy from the measured transfer function, and then estimates the acoustic properties of the tested sample installed in the tube [7].

Power

Computer

Data acquisition system

amplifier

1

2

4

5

3

Test sample

Loudspeaker

Removable rigid

backing

Figure 5: Impedance tube TL configuration [7]

2.3 Measurements results

2.3.1 Impedance tube

Measured absorption coefficients of 17 mm and 70 mm thick samples are given in Figure 6. 17 mm thick panel is effective only above 500 Hz while 70 mm thick sample gives higher absorption coefficient at mid and higher frequencies. The peak absorption for 70 mm thick sample is around 0.99 at 630 Hz.

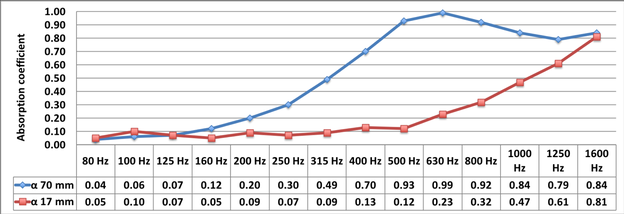

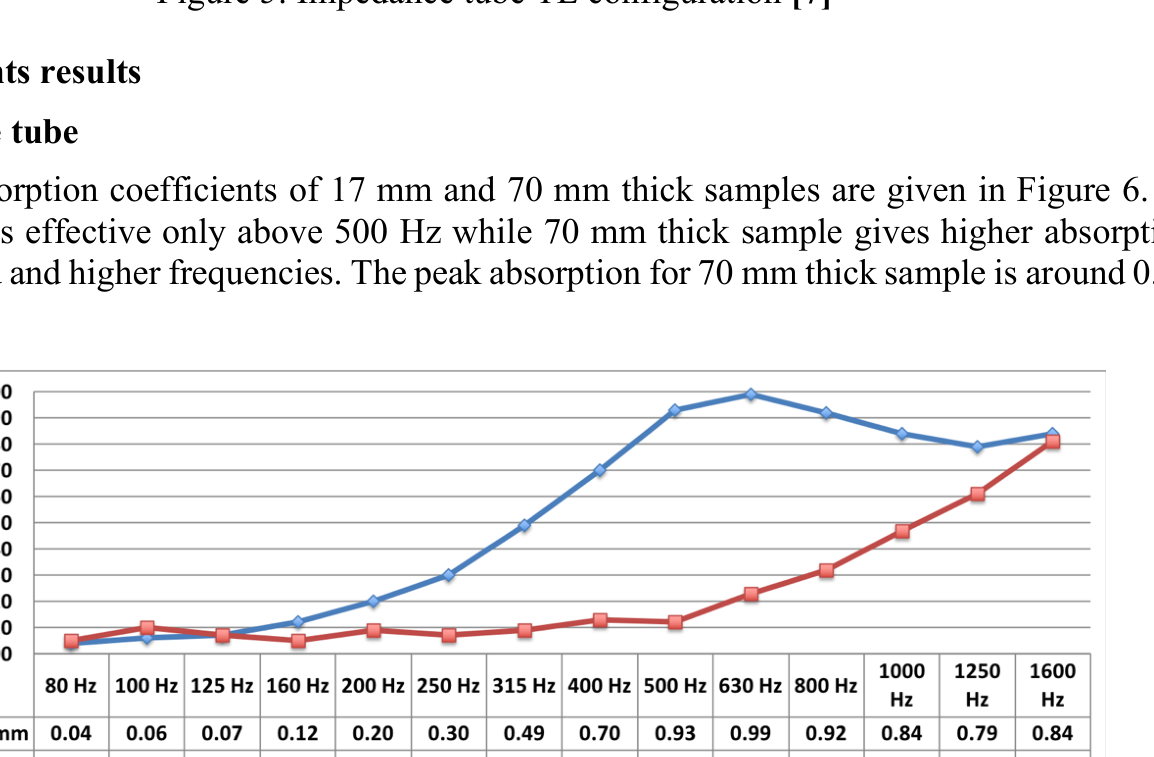

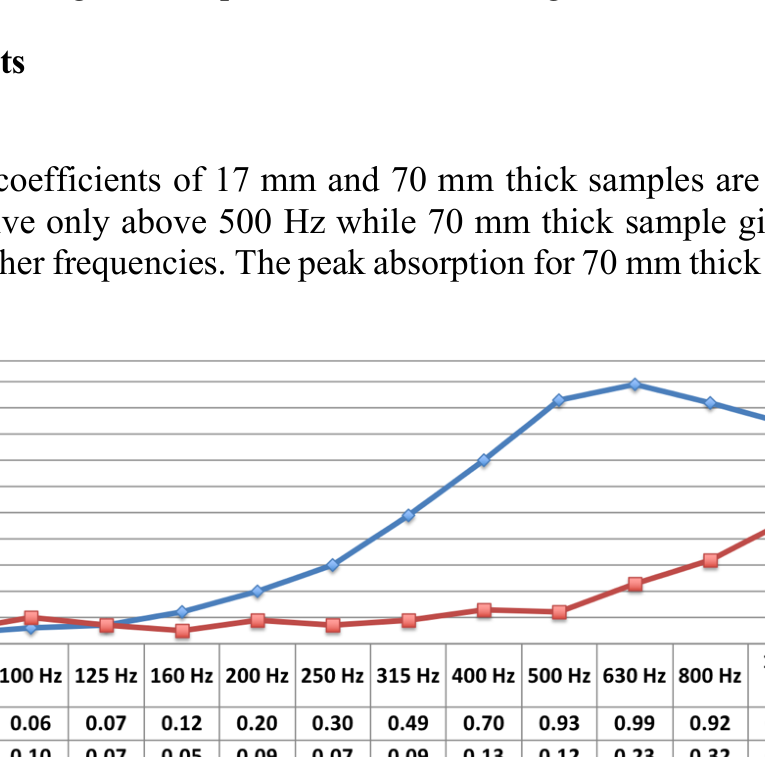

Figure 6: Absorption coefficients of 17 mm and 70 mm panels.

More samples combinations were measured in order to investigate the space optimisation of a hypo- thetical multi-layered panels. It can be directly noticed in Figure 7 how using two 17mm samples separated by air cavity increases the sound absorption performance at lower frequencies. It seems that increasing air cavity between samples increases sound absorption performance throughout frequency range while shifting maximum pressure areas to lower frequency.

scorn EEE DD red

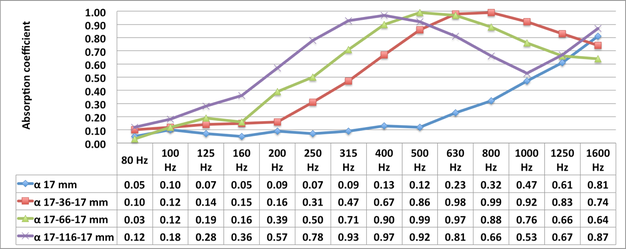

Figure 7: Absorption coefficient for different combinations.

A similar approach has been applied to the 70mm sample, being combined with air cavity and a 17mm sample. These combinations (see Figure 8) present a similar behaviour in relation to increasing air gap and sound absorption, in particular the combination 70-30 and 70-13-17 gives similar results because they have same combined thickness. This proves that increasing sample thickness and/or adding an air cavity between the sample and rigid backing would increase low and mid frequency performance of tee-bag panels.

Absorption coefficient a17 mm “a.17-36-17 mm a 17-66-17 mm sone 0.05 0.10 0.03 17-16-17 mm 0.12 100 He 0.0 oz oz 018 15 He 0.07 oa 0.9 028 160 He 0.05 ous 06 0.36 200 He 0.09 06 0.39 057 250 He 0.07 031 050 078 315 He 0.09 a7 om 0.93 03 0.67 0.90 097 500 He oz 086 0.99 0.92 023 098 097 081 He 032 0.99 oss 0.6 1000 He a7 092 0.76 053 1250 He 061 083 0.66 0.67 1600 He ost 0.74 0.64 087

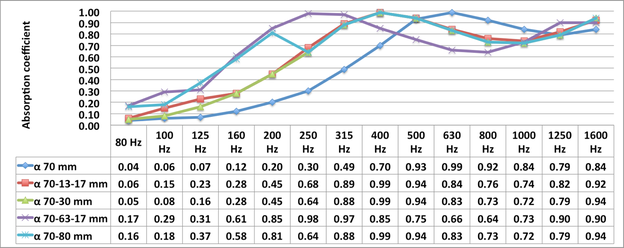

Figure 8: Absorption coefficient of 70 mm thick sample with five different combinations.

1.00 o'90 5 0.80 e 3 § 0.40 & 0.20 zou a Fearon Sc Sere Eeereae am Eeerosemrn sole 0.04 0.06 0.05 oa7 0.16 1100 He 0.06 ous 0.08 0.29 018 125 He 0.07 023 06 031 037 160 He oz 028 028 061 058 200 He 0.20 os os os 81 250 He 0.30 0.68 0.64 0.98 0.64 315 He os 089 028 097 088 He 0.70 0.99 0.99 oss 0.99 He 0.93 0.94 0.94 0.75 0.94 630 He 099 084 0.83 0.66 083 He 092 0.76 073 0.64 073 1000 He 08a 0.74 on 073 o7 1250 cs 0.79 082 0.79 0.90 0.79 1600 fe 08a 092 094 0.90 0.98

2.3.2 Impedance gun

Absorption coefficient of tea-bag panel measured in anechoic chamber and in normal laboratory conditions using impedance gun method are presented in frequency domain in Figure 9. There is very good similarity between both results above 630 Hz while some discrepancies have been observed at low frequencies. This might be because of higher background noise in the laboratory and/or the sound in the laboratory might be reverberant. Another reason might be that impedance gun response might be limited at lower frequency end.

scorn EEE DD red

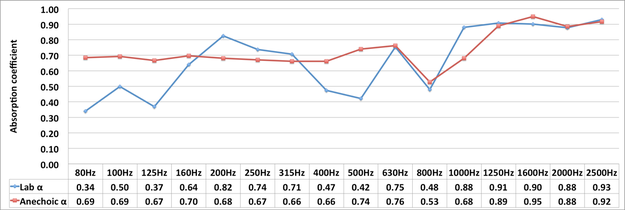

Figure 9: Absorption coefficient of tea-bag panel measured in anechoic chamber and laboratory

condition using Impedance gun.

2.3.3 Transmission, TL measurements

Measured Transmission Loss TL of two tea-bag panels are compared in Figure 10. TL of both panels increases throughout frequency range. 70 mm panel give up to 9.6 dB attenuation at 1600 Hz while 17 mm panel attenuate sound pressure level up to 4.7 dB at 1600 Hz.

1.00 090 080 070 060 050 040 030 020 030 0.00 ‘Absorption coefficient ‘20H2 100H2 125Hx 60H 200H2 250K: 21SHz 400Hs SOOHs 630K: G0OHr 1000Hs 12S0Hs 1600H: 2000H2 2S00H2 “ba 034 050 037 064 082 074 071 047 042 075 048 088 091 050 088 093 “eAnechoica 0.69 0.69 067 070 068 067 066 066 0.74 O76 053 068 089 095 088 092

Figure 10: A comparison of Transmission Loss for two tea-bag panels in frequency domain.

12.00 10.00 8.00 6.00 Transmission Loss (dB) 2.00 0.00 ‘63H | BOHs | 100H | 125Hs | 160H2 | 200K: | 250Hz | 31SHz | 400Hs | SOOHs | 630H: | €00H: [1000H2|1250H| 36004] [S1L17mm (dB) 130 140 130 120 150170 190 220 260 320 300 340 3.70 400 470 “@ it 70mm (48) 3.60 3.10 3.40 380 4.00 440 480 530 5.90 680 660 7.10 7.60 8.40 9.60

3. CONCLUSIONS

Sound absorbing panels that are made of tea bags were designed and developed to investigate their applications in architectural and building industry. Acoustical properties (sound absorption and trans- mission loss) of 17 mm and 70 mm thick panels were investigated using transfer function method and impedance gun technique. Results show that 70 mm thick panels give an absorption coefficient higher than 0.8 between 500 Hz and 1600 Hz while 17 mm thick panels give an absorption coefficient that is mostly effective at higher frequencies. Up to 9 dB sound transmission loss is obtained at some frequencies.

4. ACKNOWLEDGEMENTS

This work was supported by the London South Bank University and Acoustics research group. The authors wish to extend their gratitude to Professor Stephen Dance for helping with acoustic tests and to Mr Richard White for his dedication in conducting the acoustic experiments.

5. REFERENCES

[1]. Plastic content, Yorkshire tea - https://www.yorkshiretea.co.uk/brew-news/our-use-of-plastic

(accessed on 24 th April 2022) [2]. WRAP - http://www.wrap.org.uk/content/the-uk-plastics-pact (accessed on 24 th April 2022) [3]. K. Wong, (2017). Acoustic Benefits of Eco-friendly Spent Tea Leaves Filled Porous Material ,

Key Engineering Materials, Vol. 739, pp. 125-134, 2017 [4]. FAOSTAT, - https://www.fao.org/markets-and-trade/ (accessed on 24 th April 2022) [5]. Tea consumption, Statista.com - https://www.statista.com/statistics/264183/global-production-

and-exports-of-tea-since-2004/ (accessed on 24 th April 2022) [6]. Determination of sound absorption coefficient and impedance in impedance tubes, BS EN ISO

10534-2:2001, viewed 24 th April 2022, retrieved from BSOL British Standards Online. [7]. H. Aygun, and F. McCann (2020), “Structural and acoustical performance of recycled glass bead

panels”. Journal of Construction and Building Materials. 258, pp. 119581-119581. [8]. Measurement of sound absorption properties of road surfaces in situ, BS ISO 13472-1:2002,

13472-1:2010, viewed 24 th April 2022, retrieved from BSOL British Standards Online. [9]. Impedance gun’s manual, Microflown - https://www.microflown.com/products/ Arnhem, The

Netherlands: Microflown Technologies (accessed on 24 th April 2022). [10]. H. Aygun, 2017, Characterization of acoustical properties of felt and carpet made of natural

and environmentally friendly materials. Open Journal of Acoustics. Vol.7, No.2, June 2017.
