VIBWAY: A user-friendly computational tool for the prediction of railway-induced ground-borne noise and vibration

Robert Arcos 1

Serra Húnter Fellow. Universitat Politècnica de Catalunya Acoustical and Mechanical Engineering Laboratory (LEAM), Universitat Politècnica de Catalunya (UPC). Carrer Colom, 11, 08222 Terrassa (Barcelona), Spain.

Kenny F. Conto 2

Universitat Politècnica de Catalunya Acoustical and Mechanical Engineering Laboratory (LEAM), Universitat Politècnica de Catalunya (UPC). Carrer Colom, 11, 08222 Terrassa (Barcelona), Spain.

Hassan Liravi 3

Universitat Politècnica de Catalunya Acoustical and Mechanical Engineering Laboratory (LEAM), Universitat Politècnica de Catalunya (UPC). Carrer Colom, 11, 08222 Terrassa (Barcelona), Spain.

Paulo Jorge Soares 4

Construct-FEUP, University of Porto, Porto, Portugal

Arnau Clot 5

Serra Húnter Fellow. Universitat Politècnica de Catalunya Acoustical and Mechanical Engineering Laboratory (LEAM), Universitat Politècnica de Catalunya (UPC). Carrer Colom, 11, 08222 Terrassa (Barcelona), Spain.

Jordi Romeu 6

Universitat Politècnica de Catalunya Acoustical and Mechanical Engineering Laboratory (LEAM), Universitat Politècnica de Catalunya (UPC). Carrer Colom, 11, 08222 Terrassa (Barcelona), Spain.

ABSTRACT This paper aims to introduce preliminary statement of methods of a computationally e ffi cient and

1 robert.arcos@upc.edu

2 kenny.fernando.conto@upc.edu

3 hassan.liravi@upc.edu

4 up20305102@edu.fe.up.pt

5 arnau.clot@upc.edu

6 jordi.romeu@upc.edu

a slaty. inter.noise 21-24 AUGUST SCOTTISH EVENT CAMPUS O ¥, ? GLASGOW

user-friendly toolbox, called VIBWAY, able to predict vibration and re-radiated noise levels in two situations. On the one hand, it can predict levels in existing buildings due to new lines or after the application of mitigation measures in existing operational railway infrastructures. Thus, it can be used to assess the performance of vibration countermeasures applied at the track, at the soil and / or at the building. On the other hand, it can predict levels in new buildings to be constructed close to an existing railway line from vibration measurements in the surface of the ground where the building will be constructed. The VIBWAY toolbox is based on a non-interface 2.5D FEM-SBM approach for the wave propagation on the soil, on semi-analytical approaches for the track and the building and on rigid multibody dynamics modelling of the train vehicle.

1. INTRODUCTION

Urban and intercity railways has grown considerably the last decade. In cities, new lines have been constructed with the objective of reducing the urban tra ffi c congestion, consequently mitigating the levels of air pollution. However, the growth of the railway urban networks also implies an increase of the noise pollution induced by the train operations. During the years, old at-grade lines has been transformed into underground systems, reducing the significance of the airborne noise induced problems in cities. In contrast, due to this shift from the at-grade to the underground space, the railway-induced ground-borne noise and vibration issue is rapidly arising, specially in heavily populated areas. Ground-borne noise and vibration induced by railway tra ffi c may cause some severe annoyance on the residents of the surrounding buildings, it could induce malfunction of precision equipment and may even a ff ect the integrity of structures such as old residential building and heritage structures. Thus, local authorities have implemented regulations to control problem, typically by imposing limits for noise and vibration levels depending on the purpose of the building and other factors. To assess the accomplishment of this noise and vibration regulations, reliable and practical predictive models are required: they should be flexible enough to deal with the main types of railway tracks, railway vehicles, soil profiles, buildings and facilities, and it is highly desirable that they avoid excessive engineering costs and large computational times. To build a prediction toolbox for railway-induced ground-borne vibration, several approaches can be used to model the subsystems of a railway infrastructure, which are generally categorized as numerical, semi-analytical and empirical approaches [1]. This list should be lengthened by including hybrid approaches that combine experimental measurements with numerical modelling, which have been also proposed by numerous authors [2–5]. In the framework of numerical models, there are di ff erent existing modelling alternatives which can provide significant levels of accuracy despite of the structural complexity of the problem [6–8]. However, the use of numerical approaches to model the full system under study in the context of a railway-induced ground-borne noise and vibration prediction toolbox has two main drawbacks: the computational costs and the need for an highly experienced user. Thus, alternative proposals has appeared during last years in which these numerical approaches are used indirectly to create a database of synthetic vibration data to be used for scoping modelling purposes. This approach has been used by Connolly et al. [9] in the context of a prediction tool for high-speed railway lines and in where the database is constructed considering practical ranges for the values of the most dominant factors regarding the wave propagation problem in the soil. Machine learning approaches are then used to determine the response in particular scenarios. Regarding the modelling approaches for railway subsystems, another alternative that stands out because of their computational benefits are the semi-analytical models. In this category, probably the most well-established models for at- grade and underground railways are the one presented by Sheng et al. [10] and the Pipe-in-Pipe (PiP) model [11, 12], respectively. In the context of prediction tools, MOTIV software is a computational toolbox based on semi-analytical models of at-grade and underground railway systems [13].

In this paper, the new configuration of the VIBWAY computational tool is described. The tool has moved to a more numerical conceptualisation regarding the simulation of the wave propagation along the track embankment and the soil, discarding their previous fully semi-analytical nature [14]. Although this transformation could lead to a significant increment on the computational requirements of the tool, the use of meshless methods for the wave propagation simulation has allowed for mitigation this problem. Due to the new operational perspective, the flexibility and accuracy on the prediction of the tool has been enhanced, while keeping reasonable levels the computational e ffi ciency. Also, thanks to the new possibilities of the tool on modelling specific tunnel and embankment geometries, the practicality for technical users has been boosted. The VIBWAY software can deal nowadays with three types situations: assessment of a new railway line to be constructed, prediction of the ground-borne noise and vibration levels on new buildings due to operational railway lines, and the assessment of vibration countermeasures such as track modification, vibration isolation screens and building base isolation.

2. MODELLING STRATEGIES

In the following, the global and particular modelling strategies considered in VIBWAY are explained. Dynamic models of the railway vehicle, the train, the track, the embankment or the tunnel (for at-grade or underground railway systems, respectively), the soil and the building are described, as well as the strategies to obtain the response of the train in the evaluation points defined by the used. Coupling conditions between models are also elaborated in order to provide a general view of tool.

2.1. Track-tunnel-soil or track-embankment-soil model Due to the complexity of the wave propagation problem in the soil due to railway tunnels or at- grade tracks, the model of these subsystems is the most expensive one in terms of computational e ff ort. Thus, it plays a central role in VIBWAY. The modelling strategy considered in the software to deal with this phenomenon is based on the finite element method (FEM), to model the structure, and the singular boundary method (SBM), to model the soil where it is embedded. This method is formulated in the two-and-a-half-dimensional (2.5D) domain and receive the name 2.5D FEM- SBM [15]. For underground railway infrastructures, the structure is referred to the tunnel, while for at-grade tracks the structure is the track embankment. Ballasted and direct slab tracks are included on these structures and they are consequently modelled with the 2.5D FEM. Only the rails and floating slabs are considered di ff erently. Rails are modelled by infinite Euler-Bernoulli beams that are attached to the rest of the system using a coupling strategy presented in [16]. Floating slab tracks are also modelled independently of the FEM-structure by considering a longitudinally infinite plate with to rails attached. VIBWAY also include periodic modelling features for the fasteners and floating slabs. To simplify the experience of the user, the FEM mesh of the embankment or the tunnel structure is generated using the Delaunay-based mesh generation algorithm presented in [17]. Thanks to that, the user define those structure by their basic dimensions and properties. For example, a circular tunnel is just defined by the tunnel external radius, the thickness of the tunnel wall and the height of the tunnel invert. Figure 1 shows automatically generated meshes for a circular and a cut-and-cover tunnels, the two types of tunnels considered within the tool.

2.2. Building model In order to model the building and its coupling with the ground, VIBWAY employs a modular strategy to construct the building model simply based on Euler-Bernoulli beams and flexural plates. Again, the objective is that the user could define the complete geometry of his problem only using values of various basic geometrical parameters. The basic modelling strategy for the building is described in Clot et al. [18]. The idea is to construct the building model using rectangular plates

)(01RGHV &ROORFDWLRQ6RXUFH3RLQWV )RUFHV

FEM Nodes Collocation/Source Points  Forces

Figure 1: Examples of automatically created meshes for the case of a circular tunnel (left) and a cut-and-cover tunnel (right).

as models of the floors connected between them by a regular distribution of columns. Three new features are included in the building model of VIBWAY with respect to the Clot’s proposal. On the one hand, interaction moments between the columns and the floors are accounted for. On the other hand, primary and secondary beams are incorporated in the model. Furthermore, VIBWAY incorporates also the feature of determining the re-radiated noise in the rooms of the building if the user defines the type of building enclosures to be installed. This building model is coupled to the soil through the foundations of the building. For shallow foundations, the proposal of Bucinskas and Andersen [19] is adopted, while for piled foundations, a novel methodology based on a Euler-Bernoulli model of the pile embedded in the soil is employed (see Figure 2). The main particularity of this methodology is that it accounts for the interaction moments between the pile and the soil and that it considers the SBM to account for the soil system, resulting in an accurate and e ffi cient method.

F x M x

x

M y F z F y (u 1 , q 1 )

Evaluation point

y

M z

(u 2 , q 2 )

z

(u 3 , q 3 )

Figure 2: Model of a single pile embedded in a half-space subjected to external points loads and bending moments.

2.3. Modelling of the vehicle and the train-track excitation The dynamic model of the vehicle used in VIBWAY is a three-dimensional (3D) rigid multi-body system, as shown in Figure 2. The quasi-static excitation induced by the static component of the moving loads applied by the train to the track and the dynamic excitation caused by the rail unevenness are considered as excitation sources. The dynamic wheel / rail interaction forces are modelled using linearised Hertz contact. Both, moving train forces [20] and pull-through roughness [12] modelling strategies for the determination of the response of the system to the passage of the train are included in VIBWAY.

3. SIMULATION AND USER-INTERFACE STRATEGIES

As previously mentioned, the computational tool can deal with three main types of problems. Depending on the problem to be solved, the operating schemes of the tool are di ff erent. The problem types and simulation schemes are outlined below, together with a description of the user experience in each of the situations.

1. New infrastructures to be constructed in urban environments. In these cases, the full system should be modelled, and the software requires the user to fill the information of the mechanical and geometrical parameters of the main subsystems: the vehicle, track, embankment / tunnel, soil and building. In practical situations, engineers do not have at hands all needed parameters required to properly characterize each subsystem. In order to solve this common situation, VIBWAY holds a database of parameters for typical systems that the user can use to complete the missing data. However, it is important to note that the imperfect knowledge of the input parameters of the system could lead to very large uncertainty levels of the prediction results. In this regard, the later described hybrid modelling options, when feasible, they are always a better option. In terms of user experience, due to the automatic meshing of the for the embankment / tunnel-soil model and the modular concept for the building model construction, all information required are values of the di ff erent mechanical and geometrical parameters, while no drawing, meshing or complex interface interaction are required.

2. New buildings to be constructed close to existing infrastructures. VIBWAY has preliminary incorporated recently a novel experimental / numerical hybrid methodology for the assessment of railway-induced ground-borne for this type of problems [5]. This methodology models the incident wave field induced by the railway infrastructure through a set of virtual forces applied in the soil, which would be obtained from vibration experimental measurements in the surface of the ground where the building will be constructed. These virtual forces can be then applied to a model of the building-soil system to determine the vibration levels to be induced by the existing railway infrastructure to the studied building. A simple example is here presented, where the response on four shallow squared foundations of 1 m side and 0.5 depth is numerically assessed with the hybrid method in comparison to a reference numerical model of the foundations-soil system. In both models, the excitation is applied within the system of coordinates ( x , y , z ) at the point ( − 4 . 5 , 0 , 0) m and the centres of the four squared foundations are located at (2 . 5 , − 2 . 5 , 0) m, (2 . 5 , 2 . 5 , 0) m, ( − 2 . 5 , 2 . 5 , 0) m and ( − 2 . 5 , − 2 . 5 , 0) m. The soil properties are: shear wave speed of 150 m / s, Poisson’s ratio of 0.49, density of 1900 kg / m 3 and damping of 0.03. The distribution of collocation points (blue dots) and virtual forces (red dots) is shown in Fig. 3a, where it can be seen that just four measurement points (collocation points) for each foundation are considered. Within this assumptions, the hybrid method is capable to reproduce accurately the response the shallow foundations when they are subjected to the same excitation until 150 Hz, as shown in the comparison presented in Fig. 3b for one of the foundations.

ܱĀܲ ܱÿܲ

10 -10

4

Hybrid method Reference method

0

3

Receptance [m/N]

-2

ę [m]

2

-4

5

1

-5

0

0

50 100 150 200 250 Frequency [Hz]

Ę [m]

ė [m] 0

-5 5

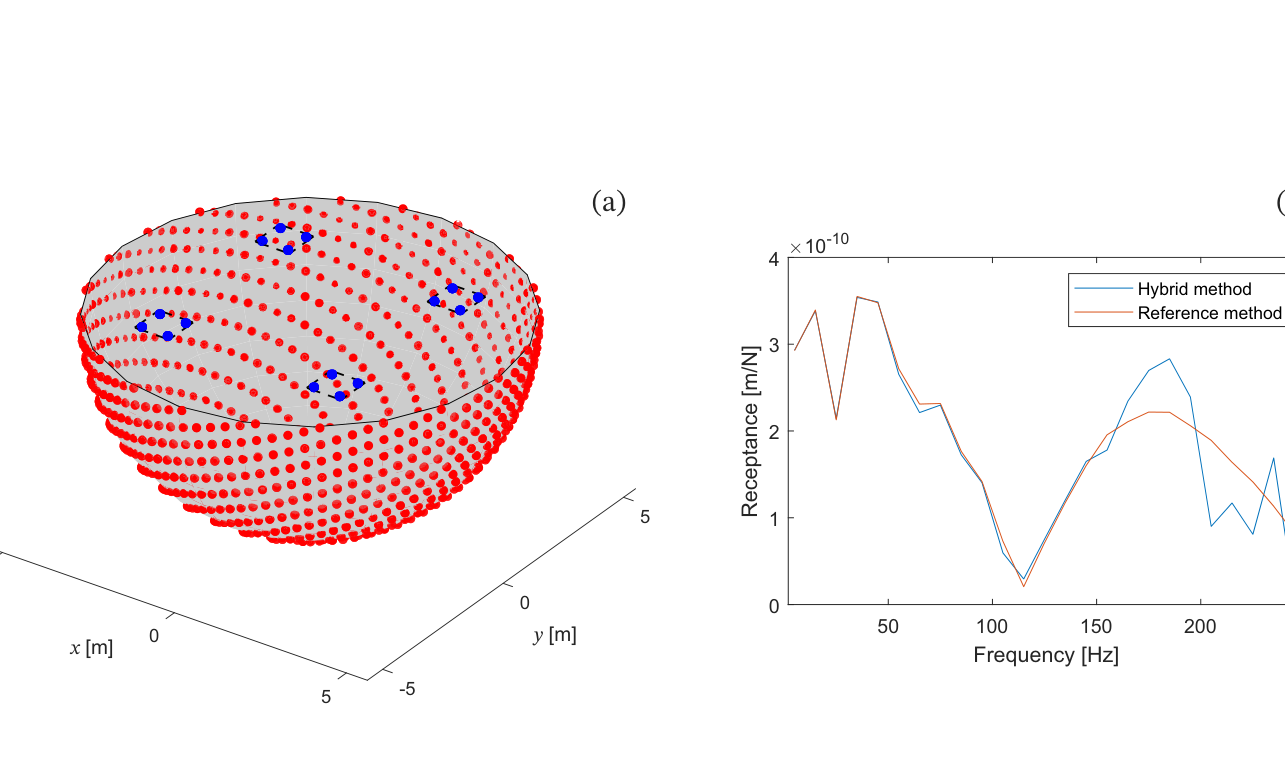

Figure 3: Numerical demonstration of the hybrid methodology in a simple example.

3. Assessment of the e ffi ciency of vibration mitigation measures to be applied in the context of operating railway systems. In this case scenario, hybrid concepts accounting for experimental data of the existing infrastructure can be also applied, as proposed in [2] and in [16]. This feature is still in process of implementation and inclusion in the VIBWAY tool.

4. CONCLUSIONS

In the last two decades, the industrial sector in Europe has been demanding computational tools for the prediction of railway-induced ground-borne noise and vibrations. An easy-to-use but accurate and e ffi cient software could be of great help to decision makers in the railway sector to address assessment studies of noise and vibration annoyance. VIBWAY software is a proposal in this direction, trying to meet demands as high flexibility, being able to compute a large variety of scenarios, a user-friendly interface to reduce the requirement of expertise on the topic and to avoid large computational times. As detailed in the present paper, the VIBWAY tool tries to match these requirements through various features and characteristics:

– The use of an internal meshing engine for the 2.5D FEM modelling of the track embankment or the railway tunnel brings benefits on accuracy with respect to semi-analytical modelling while keeping the demands to the user at the minimum.

– The use of a modular strategy for the building modelling provides again a simple definition experience to user, who is, however, restricted to rectangular floors and regular distribution of the columns.

– VIBWAY incorporates databases of mechanical parameters for typical vehicle, track, tunnel, soil and building systems in order to help the user on completing the missing information about them.

– Hybrid modelling is a novel feature of VIBWAY that enhances accuracy of the simulation, although requiring an experimental measurement campaign in the specific site under study.

Here, the existing and potential applications of the VIBWAY computational tool in the field of railway-induced noise and vibration and related topics are outlined:

– To predict the vibration levels that a new railway line, either at-grade or underground, will generate on the nearby buildings.

– To predict the vibration levels that an existing line will induce on a new building or facility to be constructed on the surroundings of the infrastructure.

– To evaluate the e ffi ciency of building base isolation systems as countermeasures to address railway-induced vibration problems.

– To evaluate the e ff ect of retrofitting existing tracks to the induced levels of noise.

– To perform comparative studies between di ff erent types of tracks.

– To accurately predict rail deflection and other parameters associated to the quasi-static excitation.

An open topic in the simulation of railway-induced ground-borne noise and vibration is the quantification of the prediction uncertainty. The complexity of the problem that needs to be addressed, the consequent amount of parameters involved and the uncertainty associated to some of them, the quantification and control of the prediction uncertainty is a must. Thus, a future line of research in this context is to propose, develop, implement and test methods to quantify the parametric and non-parametric uncertainty of ground-borne noise and vibrations predictions at the source (train-track), at the receiver (building-soil) and when designing vibration mitigation countermeasures.

ACKNOWLEDGEMENTS

The authors would like to gratefully acknowledge the financial support provided by the following research projects, without which the VIBWAY software would not exist:

– ISIBUR project: Innovative Solutions for the Isolation of Buildings from Underground Railway-induced Vibrations, funded by Ministerio de Economía y Competitivad de España, with grant reference TRA2014 52718-R.

– NVTRail: Noise and Vibrations induced by railway tra ffi c in tunnels: an integrated approach, with grant reference POCI-01-0145-FEDER-029577, funded by FEDER through COMPETE2020 (Programa Operacional Competitividade e Internacionalização (POCI)) and by national funds (PIDDAC) through FCT / MCTES.

– VIBWAY: Fast computational tool for railway-induced vibrations and re-radiated noise assessment, with grant reference RTI2018-096819-B-I00, supported by the MCIN / AEI / 10.13039 / 50110001 and FEDER “ Una manera de hacer Europa ”.

– IntRAIL: Project PTDC / ECI-EGC / 3352 / 2021, funded by FEDER funds through COMPETE2020 - Programa Operacional Competitividade e Internacionalização (POCI) and by national funds (PIDDAC) through FCT / MCTES.

REFERENCES

[1] International Organization for Standardization. ISO 14837-1. Mechanical vibration. Ground- borne noise and vibration arising from rail systems. Part 1: General Guidance, 2005. [2] K. A. Kuo, H. Verbraken, G. Degrande, and G. Lombaert. Hybrid predictions of railway induced ground vibration using a combination of experimental measurements and numerical modelling. Journal of Sound and Vibration , 373:263–284, 2016.

[3] M. Villot, E. Augis, C. Guigou-Carter, P. Jean, P. Ropars, S. Bailhache, and C. Gallais. Vibration emission from railway lines in tunnel - characterization and prediction. International Journal of Rail Transportation , 4(4):208–228, 2016. [4] C. Mouzakis, K. Vogiatzis, and V. Zafiropoulou. Assessing subway network ground borne noise and vibration using transfer function from tunnel wall to soil surface measured by muck train operation. Science of the Total Environment , 650:2888–2896, 2019. [5] R. Arcos, P. J. Soares, P. Alves Costa, and L. Godinho. An experimental / numerical hybrid methodology for the prediction of railway-induced ground-borne vibration on buildings to be constructed close to existing railway infrastructures : Numerical validation and parametric study. Soil Dynamics and Earthquake Engineering , 150:106888, 2021. [6] G. Degrande, D. Clouteau, R. Othman, M. Arnst, H. Chebli, R. Klein, P. Chatterjee, and B. Janssens. A numerical model for ground-borne vibrations from underground railway tra ffi c based on a periodic finite element-boundary element formulation. Journal of Sound and Vibration , 293(3-5):645–666, jun 2006. [7] S. François, M. Schevenels, P. Galvín, G. Lombaert, and G. Degrande. A 2.5D coupled FE- BE methodology for the dynamic interaction between longitudinally invariant structures and a layered halfspace. Computer Methods in Applied Mechanics and Engineering , 199(23- 24):1536–1548, apr 2010. [8] Patrícia Lopes, P. Alves Costa, M. Ferraz, R. Calçada, and A. Silva Cardoso. Numerical modeling of vibrations induced by railway tra ffi c in tunnels: From the source to the nearby buildings. Soil Dynamics and Earthquake Engineering , 61-62:269–285, jun 2014. [9] D. P. Connolly, G. Kouroussis, P. K. Woodward, A. Giannopoulos, O. Verlinden, and M. C. Forde. Scoping prediction of re-radiated ground-borne noise and vibration near high speed rail lines with variable soils. Soil Dynamics and Earthquake Engineering , 66:78–88, 2014. [10] X. Sheng, C. J. C. Jones, and D. J. Thompson. A theoretical model for ground vibration from trains generated by vertical track irregularities. Journal of Sound and Vibration , 272(3-5):937– 965, may 2004. [11] J. A. Forrest and H. E. M. Hunt. A three-dimensional tunnel model for calculation of train- induced ground vibration. Journal of Sound and Vibration , 294(4-5):678–705, jul 2006. [12] J. A. Forrest and H. E. M. Hunt. Ground vibration generated by trains in underground tunnels. Journal of Sound and Vibration , 294(4-5):706–736, jul 2006. [13] E. Ntotsios, S. G. Koroma, W. I. Hamad, D. J. Thompson, and H. E. M. Hunt. Modelling of train induced vibration. In IMechE: The Stephenson Conference - Research for Railways , pages 1–13, 2015. [14] Behshad Noori, Robert Arcos, Arnau Clot, and Romeu Jordi Cardona, Joan. VIBWAY: A prediction toolbox for railway-induced ground-borne vibrations. Proceedings of 2020 International Congress on Noise Control Engineering, INTER-NOISE 2020 , 2020. [15] Hassan Liravi, Robert Arcos, Arnau Clot, Kenny F. Conto, and Jordi Romeu. A 2.5D coupled FEM-SBM methodology for soil–structure dynamic interaction problems. Engineering Structures , 250:113371, 2022. [16] R. Arcos, D. Ghangale, A. Clot, B. Noori, and J. Romeu. Hybrid model for rail fasteners sti ff ness optimization in railway-induced ground-borne vibration problems. In Proceedings of the 6th conference on Noise and Vibration Emerging Methods (NOVEM) , pages 1–11, 2018. [17] D. Engwirda. Locally optimal Delaunay-refinement and optimisation-based mesh generation. [18] A. Clot, R. Arcos, and J. Romeu. E ffi cient three-dimensional building-soil model for the prediction of ground-borne vibrations in buildings. Journal of Structural Engineering - ASCE , 143(9):1–13, 2017.

[19] Paulius Bucinskas and Lars Vabbersgaard Andersen. Semi-analytical approach to modelling the dynamic behaviour of soil excited by embedded foundations. Procedia Engineering , 199:2621– 2626, 2017. [20] G. Lombaert and G. Degrande. Ground-borne vibration due to static and dynamic axle loads of InterCity and high-speed trains. Journal of Sound and Vibration , 319(3-5):1036–1066, jan 2009.
