Shore power connection for offshore vessels – Measured reduction in port and dock for airborne noise

Bernt Mikal Larsen 1 Multiconsult Norway Fjellgata 6 4612 KRISTIANSAND ABSTRACT The presentation will summarize measured noise reduction for drilling, pipelay and offshore support vessels due to shore power connection. The noise level due to airborne noise at office or storage building in distance of 100-250 m from the vessels has been registered continuously through days and nights. Airborne noise levels at nights without and with shore power connection have been com- pared. A drilling vessel had L w 110 dB and a noise reduction due to shore power connection of 18 dB. A pipelay vessel had L w 105 dB without shore power, and a noise reduction of 15 dB due to the effect of shore power. Both drilling and pipelay vessel seem to have L w of 90-92 dB with shore power connection. Two different offshore support vessels have also been measured with sound power level L w of 107 dB and 100 dB. The noise reduction with shore power connection is 13 dB for the first and 6-7 dB for the latter. With shore power connection, both offshore suppert vessels have L w of 94 dB. The sound power level with shore power connection seems to be limited by the fact that ship noise level from ventilation and fans seems to be the same. 1. INTRODUCTION

Airborne noise from ships in port has been measured at Kongsgård-Vige from drilling and pipelay vessel, and airborne noise from ships in dock has been measured from offshore support vessels at Andøya Industripark in Kristiansand in Norway. This document will compare the measured airborne noise level with and without shore power connection. The method used will be explained, as well as the considerations for the estimated noise reduction. 2. HYPOTHESIS AND METHOD FOR ESTIMATING NOISE REDUCTION DUE TO SHORE POWER

The basic hypothesis is that shore power connection of a vessel will give a constant noise reduction compared to the situation without shore power. At daytime and evening there will normally be many sources and activities which contributes to a measured noise level. The best method for determining the effect of shore power should therefore be to compare noise levels at nights, with and without 1 bernt.mikal.larsen@multiconsult.no

ae 2022

shore power. Nights without heavy rain and without strong wind have to be used, for background noise being as low as possible. The method for determining effect of shore power is a continuous registering of noise level in port/dock area, for both nights with and without shore power connection. The measurement method was to use one microphone position with instrument Norsonic N140 at port building with low influence from other background noise. If more microphone positions were used, the issue of background noise in different positions had to be carefully analysed. The microphone on port building is placed in height not shielded by the vessel. In noise calculations vessels are normally modelled as point source with omni-directional sound pressure level (same directivity in all direc- tions), therefore it is considered as good enough to have one microphone position (due to omni-di- rectional sound radiation) where it is known that the level from other background noise is significant low. The main purpose is to compare the measured noise reduction at port building, which is ex- plained by shore power when other background noise is low. The sound power level without shore power is calculated by modelling the vessel as a point source, calibrated against the measured level at night at the port buildings. Compared with literature about sound power from ships and vessels, the estimated L w from measurements shows very good corre- spondence with what should be expected. The sound power level with shore power is estimated by the level difference measured at the port building, with and without shore power. Calculations with Cadna using L w with shore power show very good match with measured noise level at the port build- ing. The Cadna model with different ships/vessels gives noise levels which corresponds very well with short time measurements in different directions within the port area and surrounding neighbour- hood. The two situations are shown in the following figures.

ae 2022

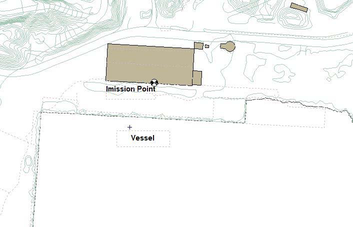

Figure 1a Vessel and imission point for airborne noise registration at Kongsgård-Vige

ae 2022

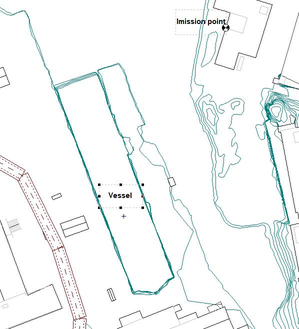

Figure 1b Vessel and imission point for airborne noise registration at Andøya Industripark 3. DRILLING AND PIPELAY VESSEL – NOISE REDUCTION DUE TO SHORE POWER

Measurement of noise from drilling and pipelay vessel was done with continuously registering by a harbor building at Kongsgård-Vige. The noise levels at nights with and without shore power were compared. The analysis of measurement data gives the following: 1. Drilling Vessel • L w 110 dB without shore power • L w 92 dB with shore power 2. Pipelay vessel • L w 105 dB without shore power • L w 90 dB with shore power

ae 2022

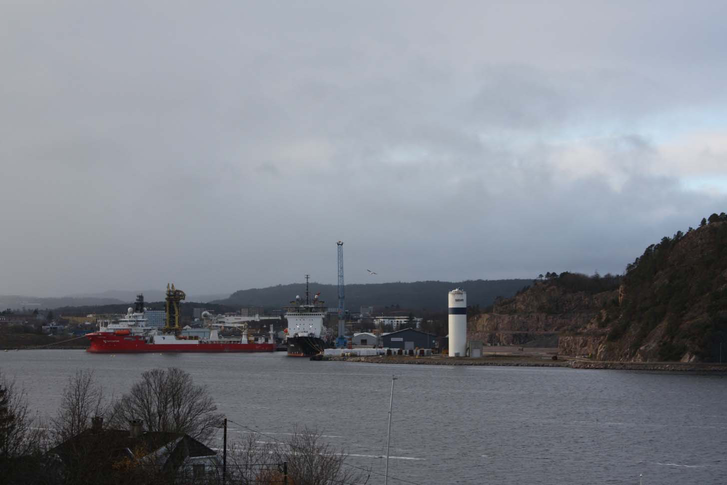

Picture 1 Drilling and pipelay vessel, Kongsgård in Kristiansand Frequency spectrum shows significant reduction in all frequencies. Normally the annoyance from neighbours is related to low frequencies, where shore power connection shows very good effect. The L w with shore power connection is dominated by noise from ventilation, fans and other noise sources on the ship and seems to be similar for the two vessels. The pipelay vessel Lorelay was in port, with and without shore power. In figure 2 the blue curve is noise level without shore power, and the other curves show noise level with shore power connection. By comparing noise level at nights for a period in autumn 2021 and winter 2022 (only with contribu- tion from Lorelay) we can see the noise reduction due to shore power connection. The measurement in January 2022 shows more than 15 dB reduction in a wide frequency range. Some of the measure- ments (with shore power) will also contain other background noise.

ae 2022

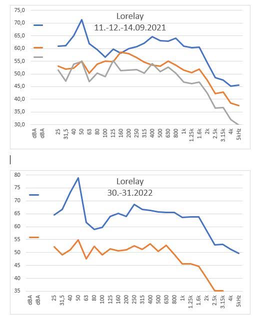

Figure 2 Frequency spectrum for the pipelay vessel Lorelay, with and without shore power – measured at port building The noise levels from the two periods of Lorelay with shore power are summarized in the tables below. Lorelay – September 2021

Octaveband 63 Hz 125 Hz 250 Hz 500 Hz 1000 Hz 2000 Hz 4000 Hz

Without shore power 72 63 66 68 67 62 51

Shore power 57 57 56 58 53 48 39

Reduction 15 6 10 10 14 14 22

Table 1 Pipelay vessel Lorelay – Noise level without and with shore power September 2021

lovey - a1.a2.1400.2001 eeeeegeeed a4 *geecegnenazeaeg=gse lovey - 0.312002

Lorelay – January 2022

Octaveband 63 Hz 125 Hz 250 Hz 500 Hz 1000 Hz 2000 Hz 4000 Hz

Without shore power

79 68 72 71 69 65 56

Shore power 57 55 56 57 52 46 36

Reduction 22 13 16 14 17 19 20

Table 2 Pipelay vessel Lorelay – Noise level without and with shore power January 2022 Table 2 shows different and more noisy activity than table 1. The noise reduction due to shore power is good in all frequencies. It is to be noted that the noise level with shore power connection is quite similar in all octave bands for the two periods. This shows that in both cases the noise level is reduced to a similar level which is dominated by ventilation, fans or other noise sources on the vessel. The reason for the different level without shore power in September 2021 and January 2022 is not exactly known, but the sound power level with shore power is approximately the same for both measure- ments. Some of the nights in September shore power connection gave noise level according to the orange curve, the reason for this is assumed to be that noise sources due to testing or other activity gave higher level with shore power than expected (the grey curve in September). The noise data summarized for shore power in September last year is based on the grey curve. 4. OFFSHORE SUPPORT VESSELS – NOISE REDUCTION DUE TO SHORE POWER

Measurement of noise from offshore support vessels was done with continuously registering by an office building at Andøya Industripark. The noise levels at nights with and without shore power were compared. The analysis of measurement data gives the following: Offshore Support Vessel • L w 100-107 dB without shore power • L w 94 dB with shore power

ae 2022

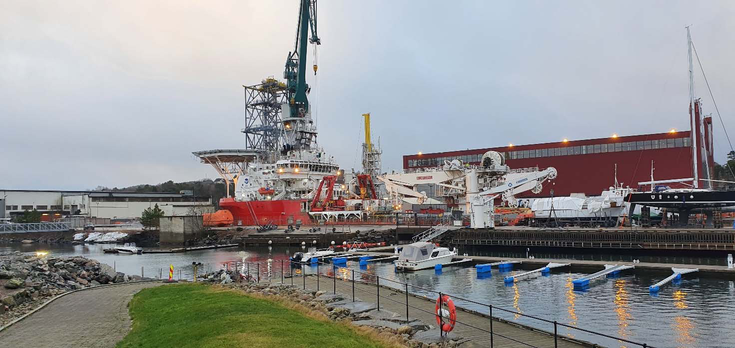

Picture 2 Offshore support vessel in dock The difference in sound power level for the two different offshore support vessels is mainly explained by different design of these two vessels. Registration of noise level at the facade of office building was done for two different vessels in December 2021 and January 2022: 1. MMA Pinnacle • Noise level 61-62 dBA at nights 13 th to 15 th of December • Noise level 49-50 dBA at nights 20 th to 21 st of December, and most quiet periods noise level of 42-43 dBA 2. Normand Jarstein • Noise level 54-55 dBA night between 11 th and 12 th of January • Noise level 48-49 dBA night between 12 th and 13 th of January – with shore power MMA Offshore Asia has confirmed that some of the nights MMA Pinnacle was in dock were without the harbor generators running. This explains the reduced noise level the night between 20 th and 21 st of December. It seems that both vessels give noise level of 49-50 dBA when harbor generators are off or the vessel is connected to shore power. The noise level of 48-50 dBA is assumed to be domi- nated by fans and ventilation on the vessels. The low noise level of 42-43 dBA from MMA Pinnacle in some quiet periods the night between 20 th and 21 st of December may be explained by that either fans or ventilation were turned off such periods. The frequency spectrum for Normand Jarstein (with shore power connection in dock) is shown in the table below.

ae 2022

Normand Jarstein – January 2022

Octaveband 63 Hz 125 Hz 250 Hz 500 Hz 1000 Hz 2000 Hz 4000 Hz

Without shore po- wer

59 74 53 52 51 46 40

Shore po- wer 52 51 50 53 51 47 41

Reduction 7 23 3

Table 3 Normand Jarstein – Noise level without and with shore power January 2022 measured at office building From the table we can see that the noise level by the office building is dominated by background noise from 250 Hz due to either weather/wind or ventilation/fans on the vessel. Since the level in the upper frequencies are quite similar with and without shore power, it is highly probable that the noise level from 250 Hz and above is due to a constant source like ventilation or fans. The measurement for Normand Jarstein shows very good effect of shore power in the low frequencies, which normally gives annoyance for the neighbourhood. Because there is no sure knowledge of what installations were turned off for MMA Pinnacle, noise level from this vessel regarding frequency spectrum is not summarized. In the night with lowest level, it is registered that the noise level in the lowest frequencies (50-200 Hz) is 50-55 dBA as for Normand Jarstein.

ae 2022

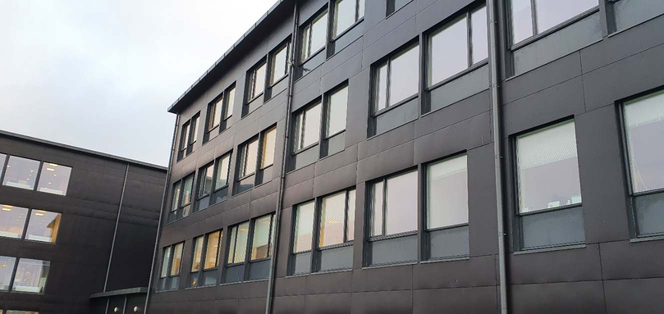

Picture 3 Continuous measurement at facade of office building

i | : lj id ro = TL ae [i]

Picture 3 shows the measurement point for continuous registration at the office building. The fre- quency spectrum for the situation with and without shore power are based on the levels registered at this building. 5. CONCLUSIONS

Shore power connection for drilling and pipelay vessels brings the sound power level L w down from 105-110 dB to 90-92 dB. For offshore support vessels, the sound power level is 94 dB with shore power connection in dock. In all cases, shore power connection gives significant reduction of low frequency noise. For drilling, pipelay and offshore support vessels, the level measured at office building is 50-60 dB in the frequency range from 63 to 1000 Hz with shore power connection. The effect of shore power seems to be much better than predicted in earlier international project [2] and shows similar results as for offshore rigs [1]. 6. ACKNOWLEDGEMENTS

May I offer my deepest acknowledgements to Kristiansand Port and Andøya Industripark for the possibility to do such measurements, that are very helpful for good estimates of noise reduction due to shore power connection. I want to give special thanks to Odd-Leif Berg, Trond Sikveland and Halvard Aglen in Kristiansand Port and to Svein Erik Halvorsen and Geir Aamo at Andøya Industripark. 7. REFERENCES

[1] Bernt Mikal Larsen. “Emitted noise in harbors – Effect of shore power” – BNAM AND INTERNOISE 2018

[2] Rob Witte. “Regulation of noise from moored ships in ports” – EURONOISE 2015
