Whole glass facade in office building – Measured noise level and requirement for facade

Bernt Mikal Larsen 1 Multiconsult Norway Fjellgata 6 4612 KRISTIANSAND ABSTRACT The presentation will summarize calculated and measured noise level from road traffic in office building with whole glass facade. The experience is based on a new office building called Baneheia Park in Kristiansand in Norway. With a whole glass facade with R w +C tr 46 dB, both calculated and measured noise level from road traffic was L d 39-40 dB. In Norway the required noise level in offices is L d 35 dB from road traffic. If effect of reduced sound isolation due to profile system (4 dB) and effect of correction due to area/dimension (4 dB) were included, the requirement for the facade in the given situation should have been R w +C tr 51 dB. With such facade, the indoor noise level of L d 35 dB would have been achieved. When taking both effect of sound transmission through profile system and correction due to area/dimension into account, the required sound isolation from laboratory should normally be at least 8-10 dB higher than the value achieved for the facade in field. 1. INTRODUCTION

A new office building in Kristiansand (Baneheia Park) was designed with a whole glass facade. In the phase of designing there were different views between two acoustic companies about necessary requirement for the facade. This document gives a summary of the noise levels, the chosen facade and conclusions to be useful for similar future projects.

2. DESIGN PARAMETERS – OUTDOOR AND INDOOR LEVEL

2.1 Outdoor noise level – free field value

Baneheia Park (Fjellgata 6) is located by a tunnel along a road with heavy traffic. The outdoor noise level at the office building was calculated by two companies to be L d 74-75 dBA free field. For design of the facade L d 75 dB was used. The traffic situation on the main road (E18) is approximately the same today and with future road system. In 2019 outdoor registration of noise for a couple of days

1 bernt.mikal.larsen@multiconsult.no

ae 2022

on the building Banehaven 4A showed L d of 69-70 dB (figure 1a and 1b) in periods with normal traffic, and very good match between this measured level and calculated L d of 68 dBA in a calculation model on the facade/position where measurements were done.

ae 2022

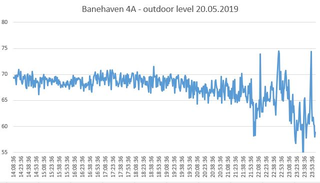

Figure 1a Outdoor measured level for Banehaven 4A at 20 th of May 2019 – L d 69 dBA from 16-19

‘Banehaven 4A - outdoor level 20.05.2019

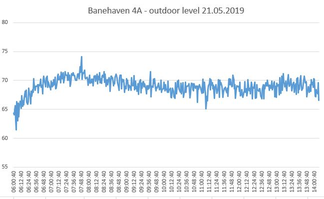

Figure 1b Outdoor measured level for Banehaven 4A at 21 th of May 2019 – L d 69-70 dBA from 08- 10 The calculation model (figure 1c) also shows that representative L d of 68 dBA at Banehaven 4A corresponds very well with representative L d of 74 dB outside Fjellgata 6 (Baneheia Park).

‘Banehaven 4A - outdoor level 21.05.2019

ae 2022

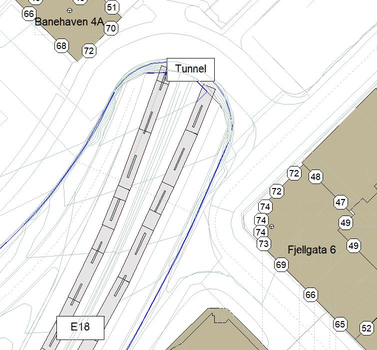

Figure 1c Outdoor calculations with Cadna for Banehaven 4A and Fjellgata 6 (Baneheia Park) Measurements at Banehaven 4A probably show higher level than calculated due to compli- cated situation for modelling with the tunnel. The free field outdoor noise level for Baneheia Park with todays traffic is (because todays and future situation are similar) L d 74-75 dB as assumed above. The office building and road are shown in picture 1.

ae 2022

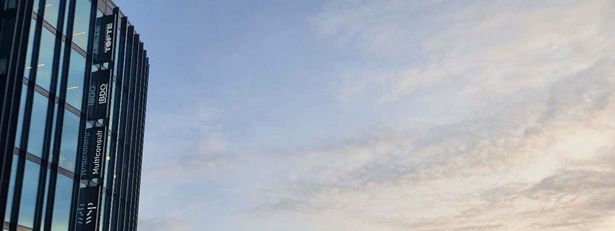

Picture 1: Baneheia Park, office building with whole glass facade According to guideline 421.425 [3] from SINTEF in Norway, the sound field is as- sumed to be diffuse from movable noise sources like road traffic. In this case there is heavy traffic, and the noise on the facade at Baneheia Park comes from both tunnel and the bridge. The guideline from SINTEF states that the angle between the direction incidence of the noise source and the flat normal vector of the facade must be at least 63° or more to affect the sound insulation of the facade in a negative way. From the whole situation and with movable source this is not assumed to be relevant for Baneheia Park. A calculation based on distance to the road and height of 3 rd floor indicates as “worst case” that the angle of incidence between traffic by the tunnel and the flat normal vector of the building is approximately 50° (picture 2).

ae 2022

Picture 2: Baneheia Park, traffic situation and diffuse noise field

2.2 Requirement to facade and indoor level

Other consulting company did calculations in early phase, where Multiconsult was responsible company for acoustics in the building process. There were two different views on the facade: 1. The other consulting company set requirement R w + C tr 46-47 dB from laboratory with 4 dB reduction due to profile system and no other correction 2. Multiconsult set requirement R w + C tr minimum 51 dB from laboratory due to 4 dB reduction for profile system and 4 dB further reduction due to area/dimensions of the facade, i.e. a total correction between field and laboratory value of minimum 8 dB. The other consulting company distinguished between areas and set R w + C tr of 47 dB as require- ment for facade to cell office and R w + C tr of 46 dB as requirement for facade to office landscape. The indoor noise limit for offices in Norway is L d 35 dBA. Measurements (continuous registering of noise level over approximately one hour) show indoor noise level of 39 dBA. This was similar to what Multiconsult predicted beforehand. The noise level was measured on days with dry asphalt February 2022: • 9 th of February 16 44 - 18 59 L d 39,4 dBA • 10 th of February 06 19 - 07 19 L d 39,3 dBA The graph for indoor measurement in the afternoon (with no employees in the office landscape) on the 9 th of February is given in figure 2.

ae 2022

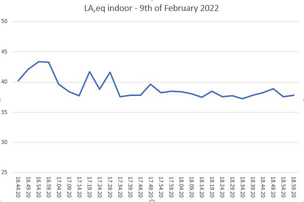

Figure 2 Measured indoor noise level in office landscape 9 th of February Earlier measurements outside (in 2019 as mentioned above) have shown constant noise level outside the facade from 06 to 19, except in rush hour. The indoor measurements morning and after- noon (as shown in picture 3) therefore represents the true value of L d .

UA,eq indoor - 9th of February 2022

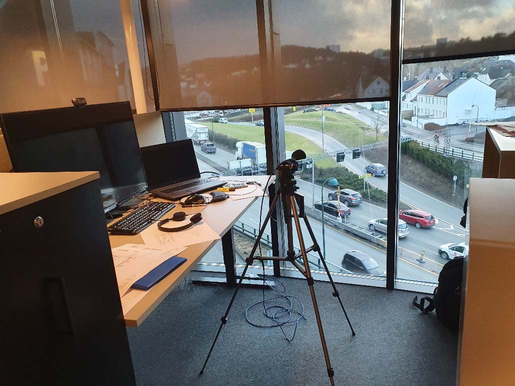

Picture 3: Baneheia Park, noise measurements inside in office

3. LABORATORY TESTS OF FACADE

Datasheet for chosen facade is shown below in figure 3.

ae 2022

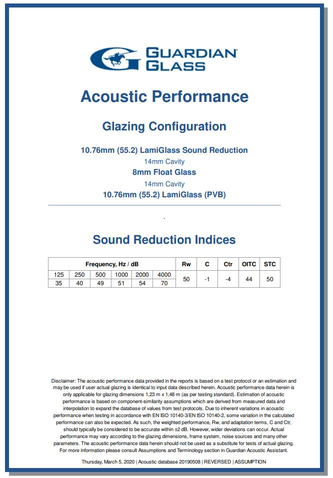

Figure 3 Datasheet for the glass facade at Baneheia Park

GUARDIAN, Giass Acoustic Performance Glazing Configuration 1076rm (55.2) Lamiiass Sound Reston ‘ome 10.7 (852 LamiGlss (PVE) ‘Sound Reduction Indices

Laboratory tests are all done according to the standard ISO 10140-2 [2]. In Norway the test area for windows in laboratory is a height of 1,5m and a width of 1,25 m. Guideline sheet 533.109 from SINTEF [4] points at a negative area correction for windows with bigger area, and this guideline also mentions that more special dimensions (than standard) should be measured to ensure the real sound reduction of the facade. The chosen facade is from Poland with a Ponzio system, and the laboratory test was done in Poland. The datasheet shows the following construction: • 10.76 mm Lami Glass Sound Reduction • 14 mm Cavity • 8 mm Float Glass • 14 mm Cavity • 10.76 mm LamiGlass The test from Poland was done according to ISO 10140-2 [2]. The datasheet states that the noise reduction of the facade is R w + C tr 46 dB. It is also said that the acoustic performance is only appli- cable for glazing dimensions 1,23 m x 1,48 m. There is a general comment that actual performance may vary according to the glazing dimensions, frame system, noise sources and many other parame- ters. From the information above, different countries seem to use the same test size of windows in laboratory. There is a general comment on different performance due to other dimensions, but the real effect of this is not clearly stated. There is today no standard method of applying test results to constructions with changed parameters such as area or size. Investigations have shown that laboratory tests are done with a profile system on all edges in laboratory. This is done in similar ways in both Norway and Poland. The Norwegian laboratory has confirmed that tests in Norway are done in the way described in Poland, i.e.: • Glass mounted in test opening and held on both sides by glazing beads (25 mm x 25 mm) • Glass edge sealed on both sides with plastic sealant Due to the given information about laboratory test (same dimension and same mounting), there is strong support for the “weakening” due to area/size of the glass in the case of Baneheia Park. Because the laboratory tests are confirmed to be similar in Norway and Poland, the experience of a facade with R w + C tr of 46 dB in laboratory being 8 dB weaker in field has to be explained by the combined effect of profile system and big area/dimension of the glass. Laboratory tests cannot include flanking transmission as this is a characteristic of a given building.

ae 2022

4. USED PROFILE SYSTEM

The company H-glass has told that the profile system is designed by Ponzio, and is a high isolated profile system shown in figure 4.

Figure 4 Facade profile used at Baneheia Park The covering with pressure strip is from aluminium, and there is insulation of polyethylene inside of the rebate. According to this information, there is no strong weakening of the glass facade due to the chosen profile system, but comparable with isolated profiles. The weakening of the high isolated Ponzio profiles seems to correspond with the experience from Euronoise 2018 [1], where isolated profiles with mineral wool gave 4 dB reduction of noise for the combined system of glass with pro- files, when the glass itself has laboratory value of R w + C tr 50 dB. 5. DIMENSION OF GLASS FACADE AND GUIDELINES

ae 2022

Both the Norwegian guidelines and the datasheet from tests in Poland states that other dimensions than used in laboratory may give other acoustic performance of the window. The phenomena is ex- plained by other lateral resonant frequencies for a window of bigger size, which is mentioned and explained in theoretical books of acoustics. In a bigger window there will be other resonant frequen- cies than in a smaller window, and the modal density will also be highest in a bigger window. The actual facade of Baneheia Park is divided in elements of following size: • Width 1,25 m and height 3,15 m • Width 0,80 m and height 3,15 m • Width of 1,55 m and height 3,15 m In this case, the height is much longer than “standard dimension” and seems to be the reason for other and more resonant frequencies than for standard window size. The article from Euronoise in 2018 [1] only focuses on the effect of the profile system without considering area/size of the glass facade. For practical use, both the effect of profile system and the

effect of area/dimension need to be considered when deciding what construction to use in a given situation. 6. CONCLUSIONS

A whole glass facade needs a correction for both weakening due to profile system and weak- ening due to area/dimension of the glass. All laboratory tests are done for “standard area”. The sug- gested total correction for a facade with high isolated profile system is 8-10 dB due to both effects mentioned. Further on more research should be done to clarify the “lower noise reduction” related to area/dimensions of glass facade. 7. ACKNOWLEDGEMENTS

May I offer my deepest thanks to the company H-glass who gave me information about the chosen solution, and Christianholm Eiendom who allowed me to present this experience for their office building. 8. REFERENCES

[1] Hans-Walter Bielefeld and Tejav DeGanyar. Acoustical Performance of Aluminium Framed Facade Sys- tems. Euronoise 2018

[2] ISO 10140-2:2021 Acoustics – Laboratory measurement of sound insulation of building elements – Part 2: Measurements of airborne sound insulation

[3] SINTEF Byggdetaljblad 421.425 Isolering mot utendørs støy. Beregningsmetode.

[4] SINTEF Byggdetaljblad 533.109 Lydisolerende egenskaper for vinduer.
