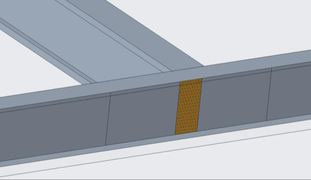

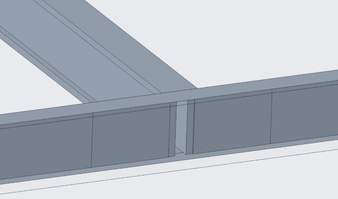

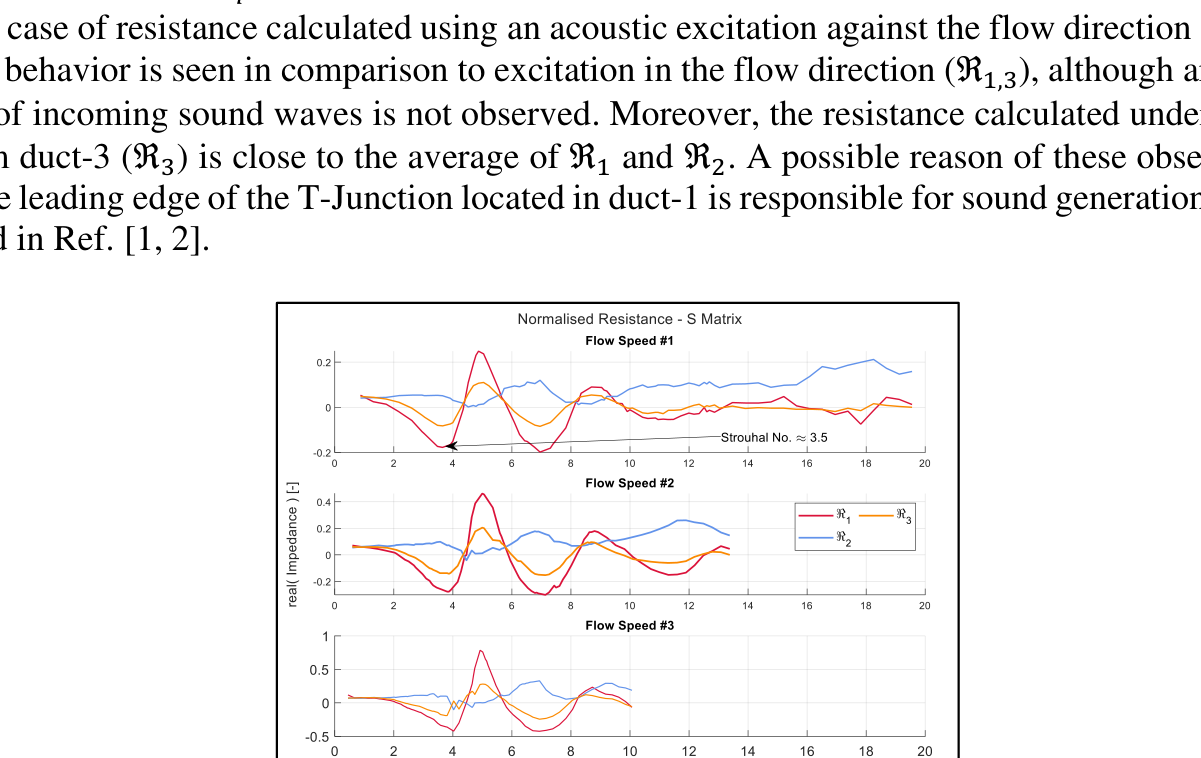

A A A Flow Acoustic Interaction In A Rectangular T-Junction With Mounted Perforate Using Acoustic Three-Port Measurements Shail A. Shah 1 , Hans Bodén 2 , and Susann Boij 3 MWL, Department of Engineering Mechanics, KTH Royal Institute of Technology Teknikringen 8, SE 100 44 Stockholm ABSTRACT Varying acoustic behaviour of perforates in presence of grazing flow and under acoustic exci- tation from different directions has been under research since mid-1950s. Empirical and semi- empirical studies have shown differing estimations of the perforate transfer impedance in pres- ence of grazing flow. Studying a perforated plate in a rectangular T-Junction, this study aims to study the perforate from three-incidence directions. Scattering matrix and the acoustic trans- fer impedance are determined experimentally under the presence of external grazing flow to characterise the perforate and the T-Junction. In accordance with previous research, an oscil- lating behaviour of amplification and attenuation is observed in the empty T-Junction. Results obtained of the perforate are of a similar nature. Comparing with the rectangular T-junction, the similarity in the flow acoustic nature of a perforate is shown. 1. INTRODUCTION Research to study the behaviour of a T-Junction in presence of grazing flow has been carried out previously in Ref. [1, 2]. A three-port technique has been defined in the references for the aero- acoustic characterization of the cross section of the T-junction. The advantage being that the tech- nique allows the characterisation of the cross section using excitation from three directions. Studying a perforate in the T-junction is inspired from Ref. [3, 4], where an extra impedance tube has been used as an addition to the two-port technique, i.e., a third duct. Using the three-port technique, the acoustic characterization of the perforate is attempted in Ref. [5, 6]. Characterisation of the acoustic properties is carried out by comparing the normalised transfer impedance and the scattering matrix coefficients. The results from Ref. [6] show a similarity with the trends observed in experiments conducted in a two-port setup [7]. Compared to the results of Ref. [6], the testing conditions are expanded in this study. Similar to Ref. [1, 2], an oscillating behaviour of the incoming sound waves are seen in an empty T-junction. These characteristics are determined under different grazing flow speeds and a Strouhal Number is used as a scaling factor. On observing the results at different flow speeds, it is found that the Strouhal number at which, for an empty T-Junction the resistance is min- imum, is a harmonic of the Strouhal number at which the resistance is minimum for a perforated T- 1 shail@kth.se 2 hansbod@kth.se 3 sboij@kth.se worm 2022 Junction. This suggests a resemblance in their behaviour, however, no oscillations are seen in case of the perforate, suggesting the proposal of Ref. [6] to be only partially correct. 2. EXPERIMENTAL SETUP AND ACOUSTIC CHARACTERISTICS The schematic of the three-port setup with and without the perforate in place is as shown in Figure 1. In case of the perforated T-Junction, the perforate is flush mounted at the intersection of the T- Junction. Moreover, the end of duct-3 is sealed to avoid any flow leakage and to obtain a constant flow profile over the perforated section. The intersection is exposed to stepped sine excitation from all three direction in the plane wave frequency range and wave decomposition is carried out to study the sound field in all three ducts. worm 2022 Sidebranch Sidebranch + Duct 3 P 3 + Duct 3 P 3 u _ P 3 u _ P 3 _ P 2 Downstream Downstream _ + + P 2 P 2 P 1 Duct 2 Duct 2 + + P 1 P 2 Upstream Upstream _ _ P 1 P 1 Duct 1 Duct 1 Flow Flow Test Sample Figure 1 Schematic of the three-port experimental setup [6]; a) Empty T-Junction, b) Perforate at the intersection of the T-Junction Characterization of the T-Junction is done using the transfer impedance (normalised with respect to the characteristic impedance of air) and the scattering matrix (S-Matrix) coefficients. Definitions of these characteristics are following Ref. [2, 6] and as shown in the following equations: 𝑃 1+ 𝑃 2+ 𝑃 3+ 𝑃 1− 𝑃 2− 𝑃 3− 𝜌 1 𝜏 2→1 𝜏 3→1 𝜏 1→2 𝜏 1→3 ൩, 𝑜𝑟 𝐏 + = 𝐒𝐏 − , (1) 𝜌 2 𝜏 2→3 𝜏 3→2 ൩= ቈ 𝜌 3 where 𝑃 𝑥± are decomposed wave pressure amplitudes in duct-x. The subscripts '+' and '-' depict the directions as per Figure 1, ρ and τ describe the reflection and transmission coefficients, respectively, and the subscripts represent the respective ducts. (𝜌 1 +𝜏 1→2 +1) (𝜌 2 +𝜏 2→1 +1) 1+𝜌 3 1−𝜌 3 − 1 𝜏 3→1 +𝜏 3→2 𝑍 1 തതത= 2𝜏 1→3 −1 , 𝑍 2 തതത= 2𝜏 2→3 −1 , 𝑍 3 തതത= 1−𝜌 3 ) , (2) 2 ( where 𝑍 𝑥 തതത is the normalised transfer impedance measured under acoustic excitation from duct- x . Given that the acoustic wavelength of the incoming sound waves is significantly greater than the sample thickness, the real part of the transfer impedance, i.e., the resistance ( ℜ ) is the important characteristic considered in this study. The cross-section of each duct is 25mm by 120mm, and the perforated plate has the same dimen- sions. The porosity of the perforated plate is 2.54%, diameter of the square-edged perforations ( d ) and the plate thickness is 1.2mm. All the measurements were performed at room temperature and in- > duct temperature was monitored using calibrated thermocouples. Data acquisition of acoustic pres- sure signals was carried out at a sampling frequency of 25.6kHz, using flush mounted Brüel and Kjær ¼- inch 4938 type condenser microphones and NI 9234 DAQ modules. Microphone positioning was carried out following the recommendations of Ref. [8] and wave decomposition was carried out using the wave numbers modelled as per Ref. [9]. The flow profile is defined as in Ref. [6], and the bulk velocity is used as input to determine the mean Mach number of the grazing flow in ducts- 1 and 2. Experiments are carried out in the grazing flow speed range of ≈10m/s to ≈60m/s. To have a dimen- sionless comparison between the characteristics, Strouhal number and Helmholtz number are used as defined in the following equation: 2𝜋𝑓𝑑 𝑒𝑞 2𝜋𝑓𝑑 𝑒𝑞 𝑆𝑡= 𝑐 , (3) 𝑈 ; 𝐻𝑒= where U is the bulk velocity, c is the speed of sound, and 𝑑 𝑒𝑞 is the equivalent diameter. For the perforated T-Junction 𝑑 𝑒𝑞 is the diameter of the perforation and for an empty T-Junction it is calcu- lated by taking the ratio of the area and the perimeter of the rectangular cross-section ( 𝑑 𝑒𝑞 = 41.37mm ). 3. RESULTS 3.1 No Flow Results The resistance and magnitude of the S-Matrix coefficients are as shown in Figure 2. As mentioned in Ref. [2], on shifting the origin of an empty T-junction, the near field effects of an empty T-junction are compensated till Helmholtz number ( He ) of unity, as seen in Figure 2 -a. The Helmholtz number is defined as per Equation (3). Hence the magnitude transmission coefficients across all three ducts overlap each other, and the calculated resistance is observed to be zero. In case of the perforate, the reflection coefficient of the main duct, as well as the coefficients describing the transmission in-/out the sidebranch overlap each other, suggesting a symmetry around the duct-3 axis. Moreover, as shown in Ref. [5], the resistance of the perforated plate matches with an analytical model proposed in Ref. [10]. Figure 2 Characteristics of Empty T-junction and the perforate in absence of grazing flow; a) Mag- nitude of the S-Matrix coefficients, b) Normalised Resistance worm 2022 3.2 Empty T-Junction under Grazing Flow Results Figure 3 shows the resistance of an empty T-Junction observed at different flow speeds compared against the Strouhal number. The oscillating behaviour of amplification ( ℜ < 0) and reduction ( ℜ > 0) can be clearly seen with minima and maxima at Strouhal numbers multiple of ≈ 3.5. The results match that of Ref. [1, 11]. In spite of performing the experiments in the same test rig as Ref. [1], as a different definition of 𝑑 𝑒𝑞 is used, the minima are observed at different Strouhal numbers. In the case of resistance calculated using an acoustic excitation against the flow direction ( ℜ 2 ), an opposite behavior is seen in comparison to excitation in the flow direction ( ℜ 1,3 ), although an ampli- fication of incoming sound waves is not observed. Moreover, the resistance calculated under excita- tion from duct-3 ( ℜ 3 ) is close to the average of ℜ 1 and ℜ 2 . A possible reason of these observations is that the leading edge of the T-Junction located in duct-1 is responsible for sound generation, as also predicted in Ref. [1, 2]. Figure 3 Normalised Resistance of empty T-Junction at different flow speeds 3.3 Perforate in the T-Junction under Grazing Flow Results On fixing the perforate at the intersection of the T-junction, measurements were carried out in presence of grazing flow and the results are as shown in Figure 4. From the S-Matrix coefficients the change in the behaviour of the transmission coefficients can be clearly marked to a particular Strouhal number. The particular Strouhal number also defines the minimum resistance observed at different flow speeds. The Strouhal number of interest is ≈ 0.7. worm 2022 Figure 4 Perforated T-Junction acoustic characteristics at different flow speeds a) Magnitude of the S-Matrix coefficients, b) Normalised Resistance On observing the resistance of an empty T-junction and the perforate, the Strouhal number at which maximum amplification is observed in the empty T-junction (St ≈ 3.5) is the fifth multiple of the one observed in the case of the perforate. Similar results were proposed in Ref. [6], and based on them it was inferred that the behaviour of the perforate and the empty T-junction is analogous. How- ever, an oscillation is not observed in case of the perforate, suggesting the inference to be only par- tially correct. worm 2022 Observing the perforate resistance, for Strouhal numbers greater than 0.7, it is proportional to the frequency, thus following the behaviour of the resistance calculated in absence of grazing flow. This Strouhal number thus indicates a limit, before and after which the nature of the resistance is governed by different factors, dividing the behaviour of the resistance into two regions. 4. SUMMARY AND FUTURE WORKS Three-port measurements are used to study the aero-acoustic properties of an empty T-junction and a perforate placed in the T-junction. Scattering Matrix coefficients and normalized transfer im- pedance are studied in the presence of grazing flow. Based on the results, a similarity between an empty T-junction and a perforate placed in a T-junction is shown. Moreover, a Strouhal number based limit is defined for the behaviour of the resistance calculated under grazing flow. Characterisation of the resistance before and after the limit is planned in the future works. 5. ACKNOWLEDGEMENTS This work is part of the Marie Skłodowska-Curie Initial Training Network Pol lution K now- How and A batement (POLKA). We gratefully acknowledge the financial support from the European Commission under call H2020-MSCA-ITN-2018 (project number: 813367). 6. REFERENCES [1] Holmberg, A., Karlsson, M. and Åbom, M., Aeroacoustics of rectangular T-junctions subject to combined grazing and bias flows - An experimental investigation. Journal of Sound and Vibration, 2015. 340 : p. 152-166. [2] Karlsson, M. and Åbom, M., Aeroacoustics of T-junctions-an experimental investigation. Journal of Sound and Vibration, 2010. 329 : p. 1793-1808. [3] Dickey, N.S., Selamet, A. and Ciray, M.S., An experimental study of the impedance of perforated plates with grazing flow. Journal of Acoustical Society of America, 2001. 110 : p. 2360-2370. [4] Feder, E. and Dean, L. W., Analytical and Experimental Studies for Predicting Noise Attenuation in Acoustically Treated Ducts for Turbofan Engines NASA Contractor Report CR-1373 1969. [5] Shah, S., Bodén, H. and Boij, S., Experimental study on the acoustic properties of perforates under flow using three-port technique , in 27th International Congress on Sound and Vibration . 2021: Prague. [6] Shah, S.A., Bodén, H., Boij, S. and D'elia, M.E., Three-port Measurements for Determination of the Effect of Flow on the Acoustic Properties of Perforates , in AIAA AVIATION 2021 FORUM . 2021: Virtual Event. [7] Kooi, J.W. and Sarin, S.L., An experimental study of the acoustic impedance of Helmholtz resonator arrays under a turbulent boundary layer , in 7th AIAA Aeroacoustics Conference . 1981. [8] Åbom, M. and Bodén, H. , Error analysis of two-microphone measurements in ducts with flow. The Journal of the Acoustical Society of America, 1988. 83 . [9] Dokumaci, E., A Note on Transmission of Sound in a Wide Pipe with Mean Flow and Viscothermal Attenuation. Journal of Sound and Vibration, 1997. 208 : p. 653-655. [10] Guess, A.W., Calculation of Perforated Plate Liner Parameters from Specified Acoustic Resistance and Reactance. Journal of Sound and Vibration, 1975. 40 : p. 119-137. [11] Meissner, M., Excitation of helmholtz resonator by grazing air flow. Journal of Sound and Vibration, 2001. 256 : p. 382-388. worm 2022 Previous Paper 460 of 769 Next
