E ff ect of Pitch Ratio of Tube Banks on Passive Acoustic Properties

Charitha Vaddamani 1 , Susann Boij 2 , Hans Bodén 3 , Mikael Karlsson 4

MWL, Dept.of Engineering Mechanics, KTH Royal Institute of Technology TEKNIKRINGEN 8, 10044 STOCKHOLM

ABSTRACT Tube banks are common design elements in heat exchangers. The most common tube bank patterns are in-line tube banks which consists of tubes spaced parallel and equally. Tube banks are characterized by their longitudinal and transverse pitch ratios (pitch to diameter). The tube bank with a pitch ratio of less than 1.25 is considered a compact tube bank and a pitch ratio equal to or greater than 2 is considered as widely spaced. In this paper, the attention is focused on the e ff ects of pitch ratio in tube banks on its passive acoustics properties which are experimentally investigated. The flow duct experimentation is performed with flow to analyse the passive acoustic properties of tube banks. The experiment is conducted for three In-line tube banks with pitch ratios 1.2 ,1.4 and 2. The Experimental results consist of scattering matrix coe ffi cients and power balance. The results are compared to see the pitch ratio e ff ect. Transmission and reflection coe ffi cients were found to increase with frequency for higher flow speeds and shows more waviness for compact tube bank. The power balance is calculated to see the amplification and attenuation e ff ects of the tube bank. It is observed that compact tube banks give amplification for higher frequencies and wide spaced tube bank give moderate attenuation for all frequencies.

Keywords : Tube Banks, In-line arrangement, Pitch Ratio, Passive Acoustic properties.

1. INTRODUCTION

Boilers and condensers contain tube banks, The tube banks have a wide range of applications in combustion industries. Plain tube banks are vital design elements in heat exchangers and automotive radiators. Tube banks are subcomponents in shell and tube heat exchangers, where flow resembles crossflow and longitudinal flow at di ff erent places of the tube bank [1]. A tube bank is often used, to denote crossflow along with the bank and tube bundle to longitudinal flow across the tubes. Plain tubes are a recent addition to automotive air conditioning, evaporators, and condensers [2]. The tube bank configuration is an important issue of design along with the control of thermoacoustic instabilities. In an acoustic instability context, tube banks can act as both acoustic absorbers and generators based on the tube bank pattern.

1 charitha@kth.se

2 sboji@kth.se

3 hansb@kth.se

4 kmk@kth.se

a slaty. inter.noise 21-24 AUGUST SCOTTISH EVENT CAMPUS O ¥, ? GLASGOW

The tube bank patterns are characterized by the transverse and longitudinal pitch-to-diameter ratio which is also called the pitch ratio. Pitch ratios are the most common parameter to vary the tube bank pattern. Based on the pitch ratio the tube bank is considered either compact or widely spaced. For widely spaced tube banks, flow across the tubes is smooth and for compact tube banks, there is a lot of turbulence along the tubes. This instability by flow with combined sound excitation creates a feedback loop and creates aeroacoustics instabilities. Pitch ratio was and is an important parameter in the design of tube bank structures.

Literature on the heat transfer and pressure drop of plain and finned tubes in heat exchangers with experimental measurements was reviewed [3]. A relationship was established between the heat transfer and the pressure drop. Regardless of the influence of the tube diameter, the severity of the turbulence within the bundle depends on the velocity of the air and the tube spacing. Thus, these parameters have a strong e ff ect on the pressure drop in the banks of tubes. When the transverse pitch of the tube was changed, the existence of a clear influence on the pressure drop at the side-air was observed, while there was a lack of significant change in the heat transfer performance [4]. Fujii et al. [5] developed a numerical 2D laminar flow and heat transfer simulation over tube banks. The study was carried out for an in-line square configuration of the tube banks with five rows with the pitch diameter ratio fixed at 1.5. Chen and Lai [6] studied the e ff ect of pitch-to-diameter ratio and Reynolds number (Re) number, pressure drop, total drag, and friction drag. The ranges of the pitch-to-diameter ratio and Re number were 1.7–2.0 and 4–40, respectively. Beale and Spalding [7] numerically evaluated the heat transfer and fluid flow in a tube bundle.

From the above literature, it is shown that there has been a lot of work performed in the field of fluid or airflow and heat transfers with the dependence of pitch ratio of tube bank. There is a research gap in dealing with acoustic instabilities and acoustic passive and active properties. In this paper, research is focused on the pitch ratio of tube bank e ff ects on the passive acoustic properties like transmission and reflection coe ffi cients.

2. MODELLING

2.1. Experimental Setup The experimental setup used in this work consists of a rectangular duct with samples at the centre as shown in the schematic diagram Figure 1. Acoustical excitation is created by loudspeakers on the upstream and downstream side. The upstream end is connected to anechoic chamber to create pressurized flow. Downstream end is connected to a mu ffl er to reduce the end reflections. The acoustic pressure fluctuations up and the downstream of the sample were recorded using eight flush mounted microphones, four on either side of the sample. The microphones were all calibrated, relative to each other. This was done using a calibrator, where all the microphones were subjected to the same sound field.

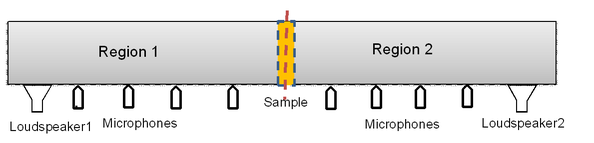

Figure 1: Schematic representation of experimental setup.

Region 1 Region 2 00 0 0 sm 0 OO 0 VY Loudspeaker Microphones Microphones Loudspeaker2

The microphone signals passed through signal conditioners to the data acquisition system. The DAQ also acted as signal generator for the loudspeakers; these were driven with a variable amplification, which was adjusted to the sound field in the duct. The flow velocity in the upstream end was measured using a pitot tube and a pressure transducer [8].

2.2. Sample In this paper, sketches of the sample used for the experimental study are shown in Figure 2.

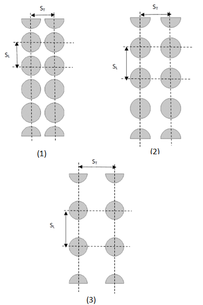

Figure 2: In-line tube samples with pitch ratios (1) P / D = 1.2 (2) P / D = 1.4 and (3) P / D = 2 .
